Cryogenic storage systems are engineered solutions for storing, conditioning, and delivering liquefied gases such as liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, LNG, and other cryogenic products. Unlike a standalone storage vessel, a complete cryogenic storage system integrates the storage tank with pressure control, vaporization, valves, instrumentation, safety equipment, and downstream gas distribution.
This guide explains how cryogenic storage systems work, the main equipment and configurations available, how systems are sized and selected, applicable engineering considerations, and the industrial applications where bulk cryogenic storage provides a reliable gas supply.
What Is a Cryogenic Storage System?

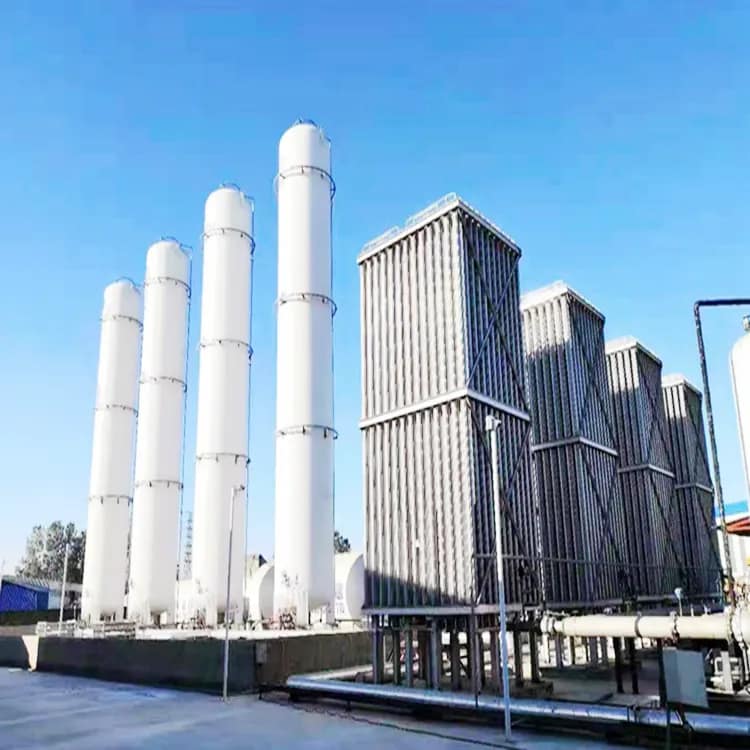

A cryogenic storage system is a fully engineered industrial gas supply system designed to store liquefied gases at temperatures below -150°C and deliver them in controlled gaseous form.
- Vacuum insulated cryogenic storage tank
- Pressure building system
- Vaporization unit (ambient or heated)
- Gas pressure regulation system
- Safety and control instrumentation
- Pipeline distribution network
These systems ensure continuous, stable, and safe industrial gas supply for high-demand applications.
Why Cryogenic Storage Systems Are Used in Industry
Industries adopt cryogenic storage systems to overcome limitations of cylinder-based gas supply:
- Unstable gas delivery and supply interruptions
- High logistics and handling costs
- Manual cylinder replacement risks
- Limited storage capacity per cylinder
Cryogenic storage systems enable continuous automated gas supply with significantly lower operating cost and improved safety.
Typical stationary bulk cryogenic tanks operate in a pressure range of approximately 0.8–2.4 MPa (8–24 bar), depending on gas type, vaporization demand, and system configuration. The pressure is not fixed inside the storage vessel; instead, it is actively maintained by a pressure-building circuit to ensure stable downstream delivery.
Cryogenic Storage System vs. Cryogenic Storage Tank
The terms cryogenic storage tank and cryogenic storage system are related, but they do not describe the same thing.
| Cryogenic Storage Tank | Cryogenic Storage System |
|---|---|
| Primarily provides cryogenic liquid containment | Provides storage and controlled gas supply |
| One major pressure-vessel component | Integrated combination of storage and supporting equipment |
| Focuses on capacity, pressure, insulation, and containment | Focuses on capacity, flow, pressure, vaporization, safety, and distribution |
| May operate as part of a larger installation | Includes the equipment required to deliver gas to the application |
In simple terms, the cryogenic storage tank is one component of a complete cryogenic storage system. A system may connect the tank to a vaporizer, pressure-control equipment, safety devices, and a downstream gas pipeline.
Looking for Custom Cryogenic Storage Solutions?
For project consultation and customized engineering solutions, or if you want to reduce operational expenses and ensure uninterrupted gas supply, contact us today.
Industrial Gases Used in Cryogenic Storage Systems
Cryogenic storage technology is used for several liquefied gases. Each gas has different physical properties and therefore requires appropriate materials, insulation, pressure design, vaporization, valves, instrumentation, and safety considerations.
| Gas | Common Cryogenic Form | Typical Applications |
|---|---|---|
| Oxygen | Liquid oxygen (LOX) | Healthcare, metal processing, combustion, and industrial oxidation |
| Nitrogen | Liquid nitrogen (LIN/LN₂) | Inerting, cooling, food processing, electronics, and manufacturing |
| Argon | Liquid argon (LAR) | Welding, metallurgy, and inert-atmosphere applications |
| Carbon Dioxide | Liquid CO₂ | Food processing, beverage production, industrial processes, and water treatment |
| Natural Gas | LNG | Fuel supply, energy systems, industrial facilities, and LNG infrastructure |
Specialized systems can also be designed for other cryogenic products where the required materials, temperature range, pressure rating, insulation system, and safety requirements are properly addressed.
Industrial Gases How Does a Cryogenic Storage System Work?
The basic operating sequence is straightforward, although the actual engineering can be complex.
- Liquid storage: Cryogenic liquid is contained inside an insulated inner vessel.
- Heat control: Vacuum insulation and other insulation layers reduce heat transfer into the stored liquid.
- Pressure management: Pressure-building equipment and controlled vaporization help maintain the required vessel pressure.
- Liquid withdrawal: Cryogenic liquid is directed toward the vaporization or transfer equipment.
- Vaporization: A vaporizer converts the cryogenic liquid into gaseous form when gaseous delivery is required.
- Pressure regulation: Regulators and control equipment condition the gas for downstream use.
- Gas distribution: The gas is delivered through the facility’s distribution pipeline to the point of use.
The system must continuously balance storage level, pressure, heat ingress, vaporization demand, gas consumption, and safety requirements.
Engineering Principle of Cryogenic Storage Systems
Cryogenic storage systems operate based on three core engineering principles:
- Vacuum insulation minimizes heat transfer into cryogenic liquid
- Phase equilibrium maintains liquefied gas stability
- Controlled vaporization enables regulated gas output
The system continuously balances liquid storage, boil-off gas control, and demand-driven gas delivery.
How the System Works
- Cryogenic liquid stored in insulated inner vessel
- Vacuum insulation reduces heat ingress
- Controlled boil-off generates internal pressure
- Pressure building system stabilizes output
- Vaporizer converts liquid into gas
- Gas delivered through pipeline network
Cryogenic Storage System Architecture
1. Storage Subsystem
Vacuum insulated cryogenic tank designed for low-temperature containment and pressure stability.
2. Pressure Control Subsystem
Maintains system pressure using controlled vaporization and regulation valves.
3. Vaporization Subsystem
Converts cryogenic liquid into gaseous form using ambient air or heated vaporization.
4. Safety & Control Subsystem
Includes relief valves, rupture discs, instrumentation, and emergency shutdown systems.
Main Components of a Cryogenic Storage System
Cryogenic Storage Tank
The cryogenic tank is the main storage component. It is designed to contain liquefied gas at low temperature while maintaining the required pressure and minimizing heat transfer.
See our cryogenic liquid storage tank resource for more information about storage vessels.
Inner Vessel
The inner vessel forms the primary containment boundary for the cryogenic liquid. Materials and design details must be appropriate for the operating temperature, pressure, gas service, and applicable design code.
Outer Jacket
The outer jacket provides structural protection and forms part of the vacuum-insulated construction. The configuration depends on tank design, insulation technology, and project requirements.
Vacuum Insulation System
Vacuum insulation reduces gas conduction and convective heat transfer between the inner and outer vessels. Multilayer insulation may also be used to further reduce heat transfer.
Pressure-Building System
A pressure-building circuit can vaporize a controlled portion of the stored liquid and return gas to the vessel to help maintain pressure during operation.
Cryogenic Vaporizer
The vaporizer converts liquid product into gas. Vaporizer selection depends on gas type, required flow rate, outlet conditions, ambient conditions, operating schedule, and other project parameters.
Learn more in our guide to types of vaporizers used for cryogenics.
Cryogenic Pump
Some installations require a cryogenic pump for liquid transfer or pressure boosting. Pump selection depends on the liquid, flow rate, suction conditions, discharge pressure, and system configuration.
See what a cryogenic pump is and how it can be integrated into a cryogenic installation.
Valves and Piping
Cryogenic valves and piping connect the storage vessel to vaporization, transfer, pressure-control, and distribution equipment. Materials and components must be suitable for the temperature and service conditions.
Instrumentation and Controls
Typical instrumentation may monitor vessel pressure, liquid level, temperature, gas pressure, flow, and other operating parameters. Larger or more automated installations may integrate these measurements into a centralized control or monitoring system.
Safety Equipment
Safety equipment can include pressure relief valves, rupture discs, isolation valves, alarms, emergency shutdown systems, and other protective devices selected according to the system design and applicable regulations.
Types of Cryogenic Storage Systems
Cryogenic storage systems can be classified according to their installation configuration, storage capacity, mobility, application, and supporting equipment. The main configurations include stationary bulk storage systems, microbulk systems, cryogenic Dewars, and mobile cryogenic transport systems.
Stationary Bulk Cryogenic Storage Systems
Stationary bulk systems are installed at a fixed facility and are commonly used where gas consumption is sufficiently high to justify on-site liquid storage. These systems typically combine a vacuum-insulated storage tank with pressure control, vaporization, valves, instrumentation, and a downstream gas distribution network.
- Large storage capacity
- Fixed installation
- Vacuum-insulated construction
- Integrated vaporization and pressure control
- Connection to permanent gas distribution networks
Typical applications include manufacturing plants, hospitals, food-processing facilities, metal fabrication, and other continuous gas users. For larger stationary installations, see our cryogenic liquid storage tanks and related cryogenic vessels.
Microbulk Storage Systems
Microbulk systems provide on-site cryogenic liquid storage at a smaller scale than many conventional bulk installations. They can be suitable for facilities with moderate and relatively consistent gas demand.
Learn more about microbulk tanks and how microbulk storage compares with other cryogenic storage options.
Cryogenic Dewars
Cryogenic Dewars are generally used for smaller-volume or portable applications. They can be appropriate for laboratories, medical applications, research, and smaller-scale cryogenic handling.
See our guide to liquid nitrogen Dewar sizes for an overview of common Dewar configurations and applications.
Cryogenic Transport Systems
Mobile cryogenic systems are designed to transport liquefied gases between production, storage, and customer locations. Examples include cryogenic semi-trailers, tube trailers, and ISO cryogenic containers.
For larger mobile storage and distribution requirements, see our gas transport solutions.
Specialized Cryogenic Storage Systems
Specialized systems may be designed for LNG, liquid hydrogen, liquid CO2, medical oxygen, or other applications requiring specific temperature, pressure, material, insulation, safety, and regulatory requirements.
The appropriate configuration depends on the gas, storage capacity, operating pressure, consumption profile, vaporization requirements, installation environment, and applicable standards.
Types of Cryogenic Storage Systems
Vertical Systems
- High-capacity industrial installations
- Compact footprint
- Standard EPC configuration
Horizontal Systems
- Transport-friendly design
- Lower height profile
- Site-constrained applications
Types of Cryogenic Storage Tanks and Systems: Features & Applications
| Type | Capacity Range | Mobility | Design Features | Applications | Safety & Compliance |
|---|---|---|---|---|---|
| Bulk Storage Tanks (Stationary) | 5,000 – 100,000+ L | Fixed installation | Double-walled, vacuum-insulated, multilayer reflective insulation, pressure control, level sensors | Industrial gas supply, hospitals, LNG terminals | ASME/EN standards, pressure relief valves, insulation monitoring |
| Cryogenic Dewars | 1 – 1,000 L | Portable / small | Vacuum-insulated, stainless steel, manual or semi-auto filling | Lab samples, medical gases, small-scale industrial use | Pressure relief valves, leak-proof design, portability certification |
| Cryogenic Tube Trailers / ISO Containers | 5,000 – 60,000 L | Mobile (road/sea) | Vacuum-insulated carbon steel or stainless steel, BOG management, safety valves | Supply to remote plants, LNG bunkering, industrial gas distribution | DOT/CGA, EN, ISO 21011 compliance, active boil-off control |
| Cryogenic Pump Skids | N/A (paired with tanks) | Semi-mobile / skid-mounted | Vacuum-jacketed piping, cryogenic valves, automated control, integrated with tanks | Chemical plants, LNG fueling stations, industrial transfer systems | Pressure & flow monitoring, automatic shutdown, ASME/EN standards |
| Micro Bulk Systems | 500 – 5,000 L | On-site small storage | Compact tanks with integrated vaporizers, remote monitoring, automatic refill | Medium-demand hospitals, labs, manufacturing | ASME/EN standards, automatic pressure control, alarm systems |
| Liquid Hydrogen Storage Tanks | 1,000 – 50,000 L | Fixed or semi-mobile | Ultra-low temperature design (−253 °C), high-strength vacuum insulation, BOG management | Hydrogen fueling, aerospace, energy | ISO 21011, hydrogen-specific safety, leak detection |
| LNG Storage Tanks | 10,000 – 200,000+ L | Fixed or mobile | Vacuum insulation, low/high-pressure design, boil-off recovery | LNG terminals, shipping, energy storage | EN, IMO, ASME, pressure relief, insulation monitoring |
| Medical Oxygen Systems | 500 – 20,000 L | Fixed or micro-bulk | Vacuum-insulated, automatic filling, purity monitoring | Hospitals, clinics, oxygen therapy supply | ISO 21011, medical-grade safety, alarms, backup supply |
Vertical vs. Horizontal Cryogenic Storage Systems
Stationary cryogenic tanks are commonly configured vertically or horizontally. The choice depends on capacity, site footprint, installation requirements, access, transportation considerations, and project layout.
| Configuration | Potential Advantages | Typical Considerations |
|---|---|---|
| Vertical | Efficient use of ground area and suitable for many high-capacity installations | Overall height, foundation, access, and site clearances |
| Horizontal | Lower overall height and useful where site height is constrained | Ground footprint, supports, access, and installation layout |
Neither configuration is universally better. The correct arrangement should be selected according to the complete project requirements.
Design Standards and Compliance
- ASME Boiler & Pressure Vessel Code
- ISO 21009 Cryogenic Vessel Standard
- GB150 Pressure Vessel Standard
- EU PED Directive
All systems undergo structural analysis, cryogenic impact testing, vacuum validation, and pressure certification.
Cryogenic Storage System Manufacturing Process
- Material selection and certification (MTC traceability)
- CNC forming and precision welding
- Non-destructive testing (RT / UT / PT)
- Vacuum insulation assembly
- Helium leak detection testing
- Hydrostatic and pressure testing
Each system is engineered for long-term industrial operation and safety compliance.
How to Choose a Cryogenic Storage System
Choosing a cryogenic storage system should begin with the gas supply requirement rather than the tank alone. A suitable system must match the facility’s consumption, operating conditions, logistics, safety requirements, and future plans.
1. Identify the Gas Type
Determine whether the system will store oxygen, nitrogen, argon, CO₂, LNG, hydrogen, or another cryogenic product. The gas determines important design and material requirements.
2. Determine Daily Consumption
Use actual or forecast consumption data where available. Average daily consumption provides the starting point for storage-capacity calculations.
3. Determine Peak Gas Demand
A tank with sufficient volume may still be unsuitable if the vaporizer, pressure-control equipment, or downstream piping cannot support the required peak flow.
4. Review Delivery Frequency
Storage capacity should be coordinated with the expected liquid delivery schedule and the reliability of the supply chain.
5. Define Required Storage Reserve
Consider planned maintenance, delivery delays, production schedules, weekends or holidays, and other site-specific factors when establishing the desired operating reserve.
6. Confirm Required Outlet Pressure
The storage system, pressure-building equipment, regulators, vaporizers, and distribution system should be compatible with the required downstream pressure.
7. Evaluate Site Conditions
Available footprint, tank height, foundation conditions, access for delivery vehicles, ventilation, separation distances, environmental conditions, and local regulations can influence the system configuration.
8. Consider Future Expansion
If gas consumption is expected to increase, the initial system design should consider future capacity requirements rather than optimizing only for today’s demand.
How to Size a Cryogenic Storage System
System sizing depends on industrial consumption and operational requirements.
- Daily gas consumption rate
- Peak demand load
- Delivery schedule frequency
- Emergency reserve capacity
- Future expansion planning
Recommended storage capacity: 3–10 days of gas consumption.
Advantages of Cryogenic Storage Systems
- Continuous industrial gas supply
- Reduced operational cost
- Improved workplace safety
- Lower logistics dependency
- Higher process stability
- Reduced carbon emissions
Industrial Applications
- Metal fabrication and laser cutting systems
- Medical oxygen distribution systems
- Food freezing and cryogenic preservation
- Semiconductor manufacturing environments
- LNG storage and regasification systems
- Aerospace and research applications
TECHNICAL FAQs
About Bulk Cryogenic Storage System
A cryogenic storage system is an engineered industrial gas supply solution for storing liquefied gases such as oxygen, nitrogen, argon, CO₂, and LNG at temperatures below -150°C. It integrates vacuum-insulated storage tanks, pressure-building systems, vaporization units, gas pressure regulation, safety instrumentation, and pipeline networks to ensure continuous and stable gas delivery.
Main components include: Inner vessel, outer jacket, vacuum insulation system, pressure building system, vaporizer units, and safety & control systems such as relief valves, rupture discs, and emergency shutdown devices.
Stationary cryogenic tanks typically operate at 0.8–2.4 MPa (8–24 bar) depending on gas type and vaporization demand. Modern tanks have static evaporation rates between 0.2% and 0.6% per day, influenced by tank size and insulation quality.
Annual inspections are standard, with daily operator checks recommended to ensure pressure integrity, vacuum insulation effectiveness, and safety compliance.
Cryogenic systems follow ASME Boiler & Pressure Vessel Code, ISO 21009, GB150, and EU PED directives. Compliance covers structural integrity, pressure relief, insulation performance, and operational safety.
Safety systems include relief valves, rupture discs, automatic shutdown devices, and continuous monitoring instruments. These prevent overpressure, uncontrolled gas release, and ensure compliance with international safety standards.
Cryogenic tanks typically use stainless steel for inner vessels, carbon steel for outer jackets, and multi-layer reflective insulation (MLI) within a vacuum space. Materials are selected for low-temperature durability, pressure resistance, and minimal heat transfer.
Sizing depends on daily gas consumption, peak demand, delivery frequency, emergency reserve, and future expansion. Recommended storage is typically 3–10 days of gas consumption.
