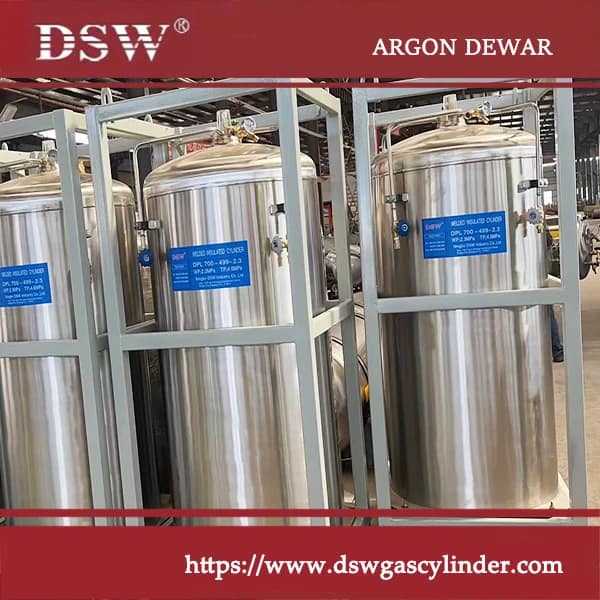

DSW supplies high-quality liquid argon dewars and argon dewar bottles for the safe storage and transport of cryogenic gases, including liquid argon (LAr), liquid oxygen (LO₂), liquid nitrogen (LN₂), and CO₂.
Our argon storage dewars are manufactured from premium stainless steel and built to stringent international safety standards. The result is a durable, low-evaporation dewar argon solution suitable for industrial, medical, and laboratory applications.
Available in a range of argon dewar sizes, from small laboratory models to large industrial argon dewar tanks, these vessels ensure a a reliable gas or liquid supply for every requirement.
Key Features

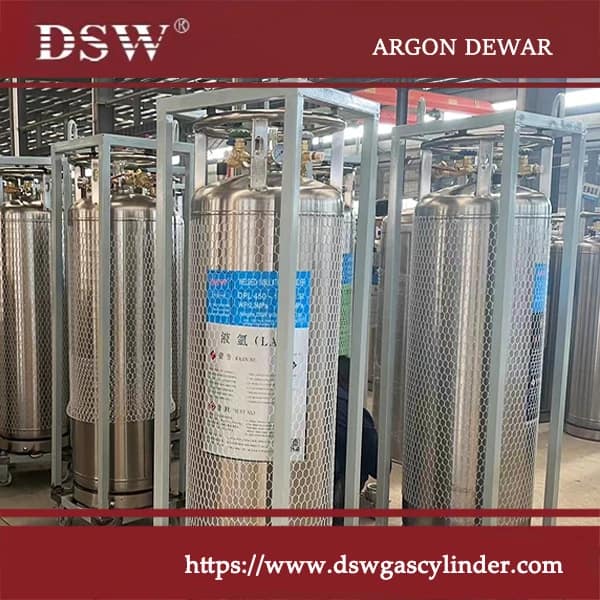

- Multi-Layer Vacuum Insulation – Minimises heat ingress and evaporation.
- Stable Gas Supply – Integrated vaporiser provides continuous output.
- International Standard Valve System – Compliant with CGA/DIN/GB; premium imported Rego® valves available.
- Shock-Resistant Structure – Reinforced base and damping ring for safe transport.
- Digital Liquid Level Gauge (Optional) – Accurate monitoring of contents.

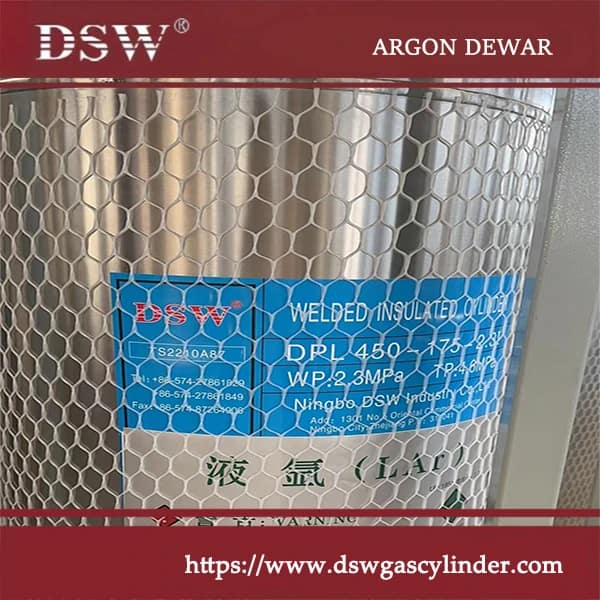

- Multiple Argon Dewar Sizes – Capacities from 80L to 1000L to suit all applications.
Types and Capacities
Argon dewars are available in a variety of sizes and pressure levels to suit different applications:
• Laboratory dewars (60–265L): Suitable for routine high-volume gas use.
• Industrial dewars (160–450L): Designed for heavier demand; microbulk options exceed 1000L for large-scale operations.
• Pressure ratings: Low, medium, and high pressure from 22 psi to 350 psi.
• Construction: Vacuum-insulated stainless steel with multi-layer insulation, welded structure, and integrated safety relief valves.
Dewar Tank Sizes
| Model | DPL-175 | DPL-195 | DPL-210 | DPL-375 | DPL-410 | DPL-450 |
|---|---|---|---|---|---|---|
| Dimensions (D × H, mm) | 508 × 1350 | 508 × 1652 | 508 × 1747 | 900 × 1632 | 900 × 1738 | 900 × 1857 |
| Working Pressure (Psig) | 203 | 203 | 203 | 203 | 203 | 203 |
| Pressure Relief Valve (Psig) | 231 | 230 | 230 | 231 | 231 | 231 |
| Inner Container Bursting Disc (Psig) | 377 | 377 | 377 | 377 | 377 | 377 |
| Maximum Liquid Capacity (L) | 175 | 195 | 210 | 375 | 410 | 450 |
| Usable Liquid Capacity (L) | 166 | 185 | 197 | 357 | 390 | 427 |
| Tare Weight (kg) | 111 | 117 | 123 | 200 | 212 | 234 |
| Argon Liquid Capacity (kg) | 208 | 233 | 250 | 447 | 488 | 535 |
| Nitrogen Evaporation Rate (%/day) | ≤2.1 | ≤2.0 | ≤2.0 | ≤1.8 | ≤1.8 | ≤1.8 |
Tips
- Double-wall surfaces are silver-plated or polished to reduce heat radiation.
- Inner wall neck uses non-conductive material to minimise heat transfer.
s
Applications
DSW argon storage dewars are suitable for a wide range of applications, including:
- Metal cutting, argon-arc welding, and industrial fabrication.
- Laboratory and medical supply of oxygen, nitrogen, and argon.
- Pharmaceutical and biotechnology processing.
- Industrial gas distribution and LNG handling.
- Food freezing, packaging, and preservation.
- Electronics, chips, and semiconductor manufacturing.
