Types of Liquid Argon (LAr) Cryogenic Tanks
Stationary LAr tanks provide reliable, long-term cryogenic storage for industrial, medical, and research applications. Selecting the right tank ensures safe, efficient, and cost-effective argon supply.
| Type of LAr Tank | Description | Key Features | Common Applications |
|---|---|---|---|

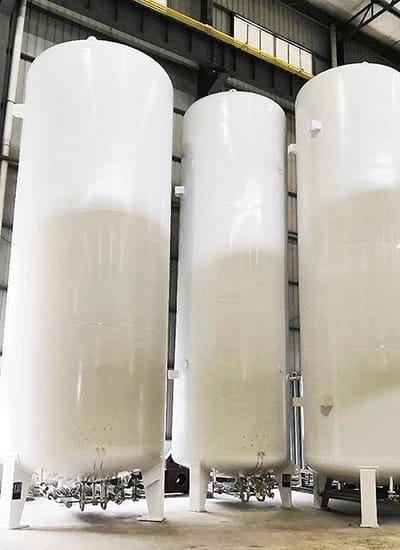

| Vacuum-Insulated Cryogenic Tank | Double-walled tank with high-vacuum insulation to minimize heat transfer and LAr boil-off. | Low thermal loss, stable pressure, long-term storage. | Industrial welding, laboratories, large-scale manufacturing. |
| Atmospheric Pressure LAr Tank | Stores liquid argon at ambient pressure with insulation for boil-off control. | Simple design, lower cost, easy maintenance. | Medium-scale industrial plants, research facilities. |
| Pressurized Cryogenic Tank | Maintains controlled pressure to reduce boil-off and allow high-flow LAr withdrawal. | Fast gas supply, integrated safety valves, reliable frequent use. | High-demand manufacturing, industrial LAr supply systems. |
| Modular / Bundled Tank | Multiple smaller tanks installed together to form a scalable storage system. | Flexible installation, scalable capacity, easier maintenance. | Hospitals, semiconductor manufacturing, variable-demand industrial facilities. |
| Custom-Designed LAr Tank | Engineered for specific operational or space requirements. | Optimized capacity, integrates with piping & vaporization, tailored solutions. | Specialty research labs, large industrial plants, unique manufacturing setups. |
