LNG Storage Tanks

LNG Storage Tank

LNG needs to be stored at temperatures around -162°C (-260°F).
The vacuum insulation helps minimise heat ingress, thereby reducing the amount of LNG that boils off and ensuring efficient storage.
Vacuum LNG tanks are designed to handle the pressure changes that occur due to the vaporization of LNG.

Benefits

  • Vacuum-jacketed and super insulated:
  • Combination pressure regulator:
  • Standard dual relief system:
  • Built to GB or ASME Sec. VIII, Div. 1 Specifications:
  • Welded stainless steel piping:

one set 5m3 liquid LNG tank load in one 20GP ;
one set 10m3 cryogenic LNG tank price load in one 40HQ with customized size
one set 15m3 vertical horizontal LNG storage tank load in one 40FR;

Tags, ,
Categories, ,
FacebookXPinterestRedditLinkedinTelegramEmail

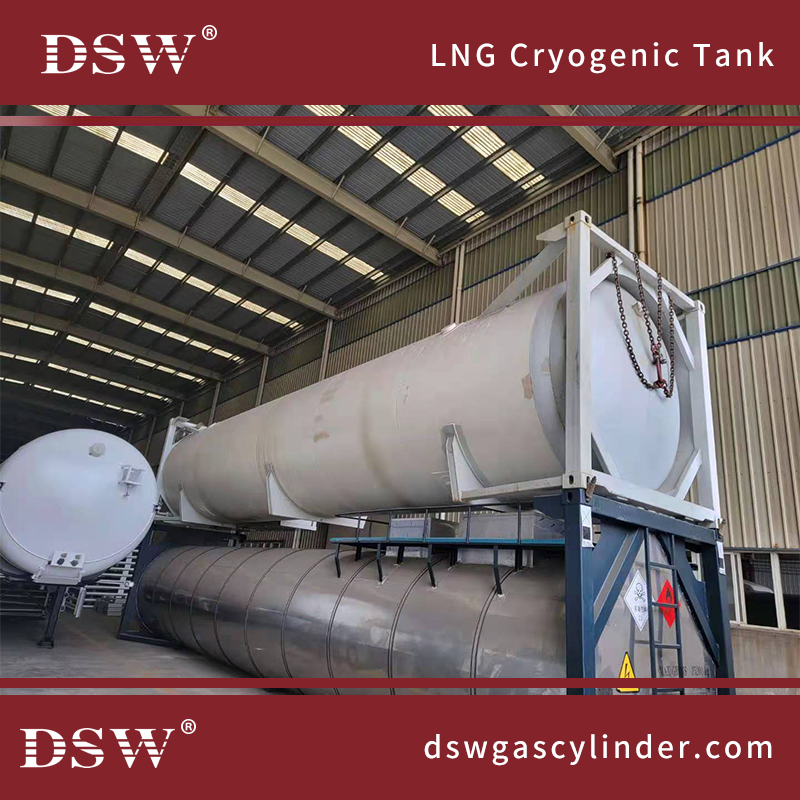

LNG Cryogenic Tanks – Liquid Natural Gas Storage Solutions

Optimizing Efficiency and Safety with Reliable LNG Storage
DSW has been providing LNG cryogenic tanks for liquefied natural gases since 2004.
Since then, DSW has sold over 2,000 LNG tanks with the highest-quality standard designs and individual solutions tailored to customer requirements.
DSW’s Vacuum LNG tanks have capacities ranging from 3,000 to more than 100,000 and feature standard operating pressures of 18 bar, 22 bar, or 36 bar, respectively.

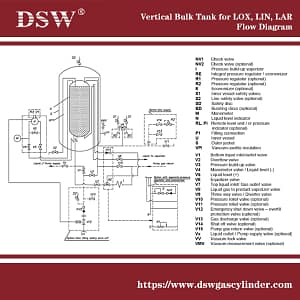

LOX cryogenic tanks，LIN cryogenic tanks，LAR cryogenic tanks

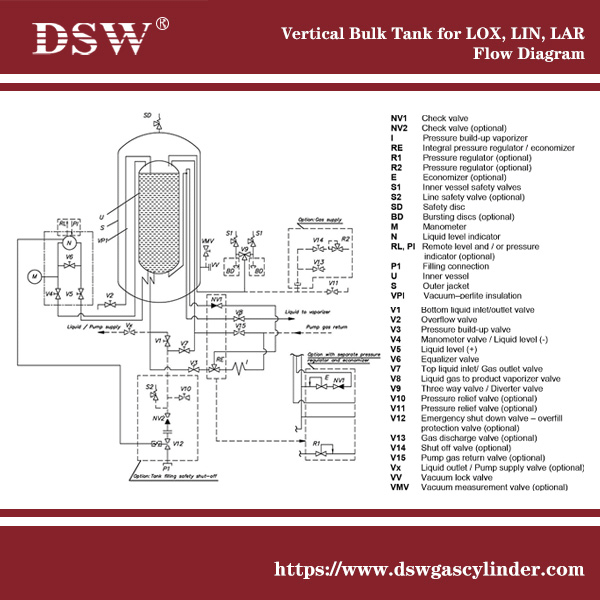

LOX cryogenic tanks， LIN cryogenic tanks， LAR cryogenic tanks

LNG Tanks

Unparalleled Storage Capacity and Performance

  • Diverse Tank Options: We offer a wide selection of LNG storage tanks, ranging from 89m³ to 1225m³, available in horizontal and vertical configurations to suit your specific needs and site constraints.
  • Outstanding Thermal Efficiency: Our tanks feature a lightweight stainless-steel inner vessel encased in a robust outer jacket. Combined with superior vacuum insulation technology, this design minimizes heat transfer, ensuring extended LNG hold times and minimal product loss.

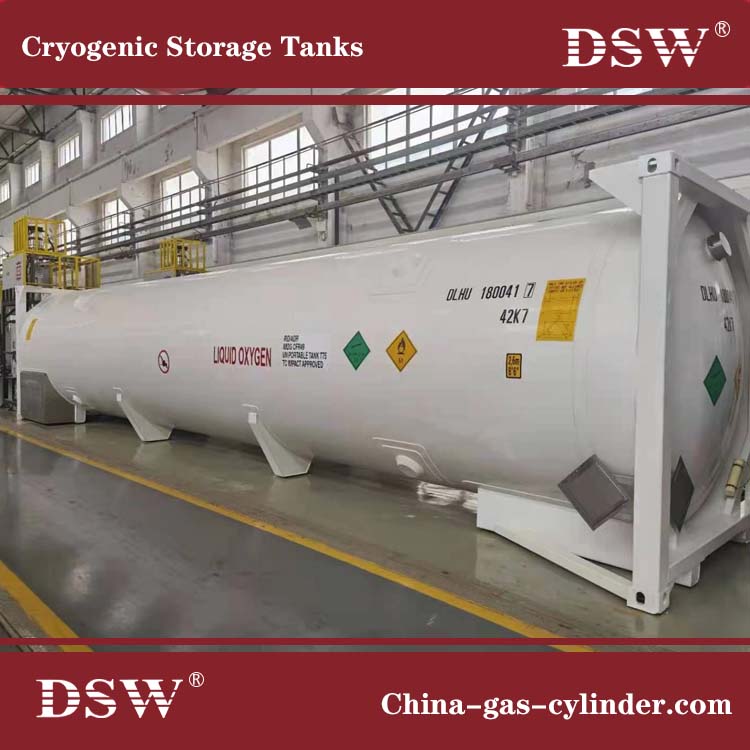

20M3 Cryogenic Storage Tank , 20M3 Cryogenic ISO Tank

The DSW Plant is certified according to:
– AN ISO 9001/2000
– ASME (U, U2, R-Stamp)
– Manufacture license of special equipment
People’s Republic of China and others

The Pressure Equipment Directive EU 97/23/EC and EN 13458 manufacture and test the pressure vessels.
These codes are internationally accepted. Consequently, installing and using these tanks in and outside China will be much easier than before.

LNG Cryogenic Tank specifications

Vacuum Powder Heat Insulation

Parameter Inner tank Outer tank
Design pressure (MPa) 0.84 -0.1
Loading Medium LNG, LCO2
Material 16MnDR Q235-B
Interlayer Brilliant Expansion Perlite
Temperature (°C) -196 50
Test pressure (MPa) 1.1
Leak test helium test

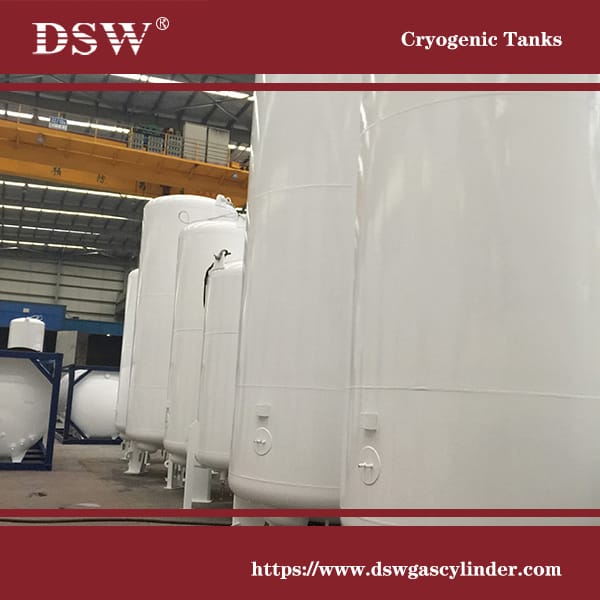

Liquid Natural Gas Tanks (vertical type, sizes)

Model Effective Volume (M3) Working Pressure (MPa) Static Evaporation Per Day (%/d) Weight Inner tank (kg) Weight Total (kg) Size Diameter x Length x Thickness (mm)
DSWV-5/0.8 5 0.8 0.65 1040 4430 Φ1400×3680×6 / Φ1900×5115×8
DSWV-10/0.8 10 0.8 0.55 1980 7230 Φ1700×4950×8 / Φ2200×6400×8
DSWV-15/0.8 15 0.8 0.53 2735 9080 Φ1900×5905×8 / Φ2400×7330×8
DSWV-20/0.8 20 0.8 0.5 3575 11010 Φ2100×6465×8/10 / Φ2600×7955×8
DSWV-30/0.8 30 0.8 0.44 5300 16440 Φ2400×7410×10 / Φ3000×8930×10
DSWV-50/0.8 50 0.8 0.35 8705 25870 Φ2600×10380×10/12 / Φ32000×12000×12
DSWV-100/0.8 100 0.8 0.25 16140 48765 Φ3000×15425×12/14 / Φ3600×17260×14

20M3 Cryogenic Storage Tank,20M3 Cryogenic ISO Tank

20M3 Cryogenic Storage Tank , LOX storage tank



20M3 Cryogenic ISO Tank
The Cryogenic Tank temporarily stores cryogenic liquefied gases under pressure. The inner vessels are made of austenitic stainless steel and cold-stretched for selected medium/high-pressure models. These tanks are also available vertically or horizontally and can be used for LIN, LOX, LAR, LNG, CO2, and N2O.
