20M3 Cryogenic Storage Tank , LOX storage tank

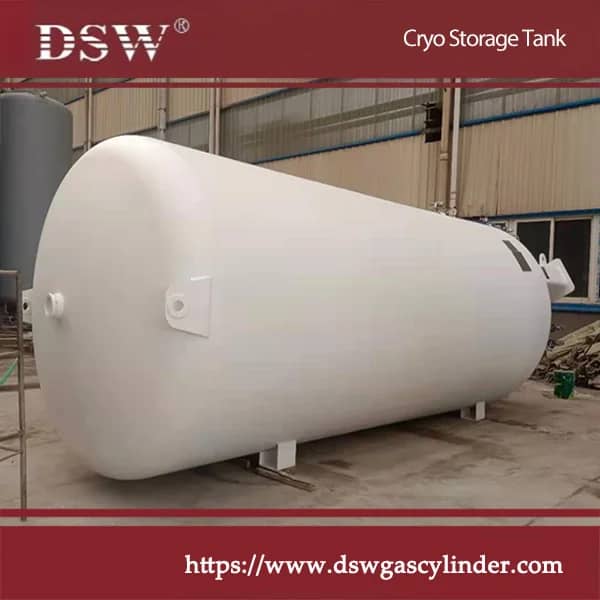

20M3 Cryo Storage Tank

A Cryo storage tank is a specially designed container that stores and transports liquid gases, such as nitrogen, oxygen, argon, helium, and hydrogen, at extremely low temperatures.
Cryo storage tanks are heavily insulated to minimize heat transfer and maintain the extremely low temperatures required for the stored liquefied gases.
LOX storage tank comes in various sizes and configurations to accommodate different storage capacities and site requirements.
one set 15m3 Vertical LNG storage tank load in one 40FR;
one set 30m3 cryogenic lng tank load in one 40FR;
more than 50m3 cryogenic LNG /liquid oxygen/ nitrogen/argon storage tank should be loaded in bulk vessel

20M3 Cryogenic Storage Tank

DSW Cryogenics offers small and bulk cryogenic storage tanks that can be utilized for many applications with the highest quality standard designs per customer requirements.
These tanks are available in sizes from 2,000 to 35,000,000 liters, with all vessels being built up to the customer’s requirements.
The DSW’s tanks include superior vacuum technology for the highest thermal performance and feature all stainless steel piping for strength and corrosion resistance.
These vacuum-insulated pressure vessels store cryogenic liquefied gases like nitrogen, hydrogen, oxygen, and carbon dioxide.

20M3 Cryogenic Storage Tank , LOX storage tank

Cryo storage vessels have three essential components:

Inner Pressure Vessel
When exposed to cryogenic temperatures, a vessel is usually made of stainless steel or other materials with favorable strength characteristics.
Outer Vessel
A vessel made of carbon steel or stainless steel. Under normal operating conditions, this vessel retains the insulation around the inner pressure vessel and maintains a vacuum around the inner container. Typically, the outer plate is not exposed to cryogenic temperatures.

The space between the inner and outer vessel, containing several inches of insulating material, is maintained in a vacuum. The vacuum and insulating material help to reduce heat transfer, thereby reducing the boil-off of the liquid oxygen, liquid nitrogen, or liquid argon stored within the vessel.

20M3 Cryogenic Storage Tank , LOX storage tank
20M3 Cryogenic Storage Tank , LOX storage tank

20M3 Cryogenic Storage Tank , LOX storage tank

A complete range of vertical and horizontal cryogenic vessels are designed and manufactured to the highest international codes and quality standards;
The pressure vessel is ASME, Section VIII, Division 1. It has both Canadian (CRN) and Chinese pressure vessel approval. It is easy to operate and comes with an extended vacuum warranty.

Cryo Storage Tank Specifications – Oxygen, Nitrogen, and Argon

20M3 Cryogenic Storage Tank , LOX storage tank
Cryogenic stationary tanks are specifically designed to store cryogenic liquefied gases under pressure for extended periods. Inner vessels are made of austenitic stainless steel and cold stretched for selected medium / high-pressure models. These tanks are available vertically or horizontally and suitable for  LIN, LOX, LAR, LNG, CO2, and N2O.
