Cryogenic Transport Trailers

Cryogenic Transport Trailers

5m3 liquid LNG tank load in one 20GP ;
20m3 capacity vacuum LNG tank load in one 40FR;
30m3 cryogenic lng tank load in one 40FR;
50m3 cryogenic vessel load in one 40FR;
The DSW Plant is certified according to:
– EN ISO 9001/2000
– ASME (U, U2, R-Stamp)
– Manufacture license of special equipment
People‘s Republic of China and others

Description

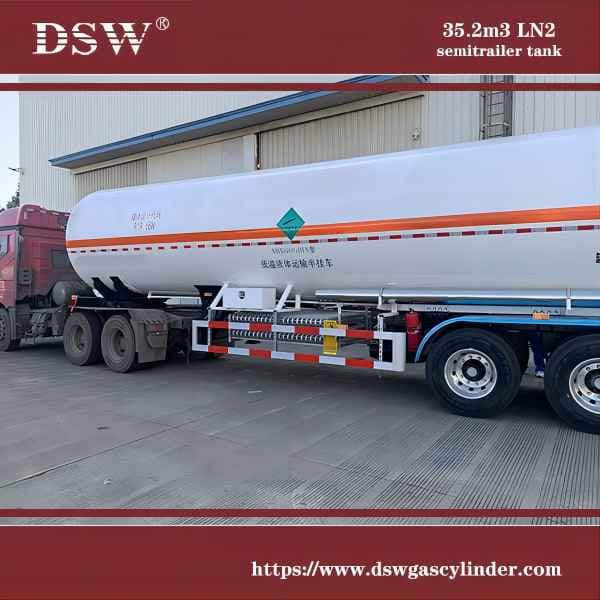

 Cryogenic Transport Trailers

DSW manufactures cryogenic trailers with a variety of pump and drive options and the Cryogenic Transport Trailers are ASTM certified. They are most commonly used to transport Oxygen, Nitrogen, and Argon and are built for maximum payload, safety, economy and longevity

Cryogenic Transport Trailers for liquid Oxygen/ Argon/ Nitrogen.
Volume 30,000L; working pressure: 1.6 bar,
Overall dimension: Φ11810 X 2500 X 3650
Inner shell: stainless steel (S30408),
Outer shell: carbon steel (Q345R),
Cryostar pump including the inlet and outlet fexible hose and fillter is attached to the tank.
Design standard:
a.GB150 (Pressure Vessels)
b.GB/T18442 (Multi layer Insulation Pressure Vessel)

Model Name Medium Volume Overall Dimension Inner shell Outer shell Design Standard
9401GDYNW LN2 transporter Liquid oxygen/argon/nitrogen 30000L Φ11810*2500*3650 mm Stainless steel (S30408) carbon steel (Q345R) a.GB150 (Pressure Vessels) b.GB/T18442 (Multi layer Insulation Pressure Vessel

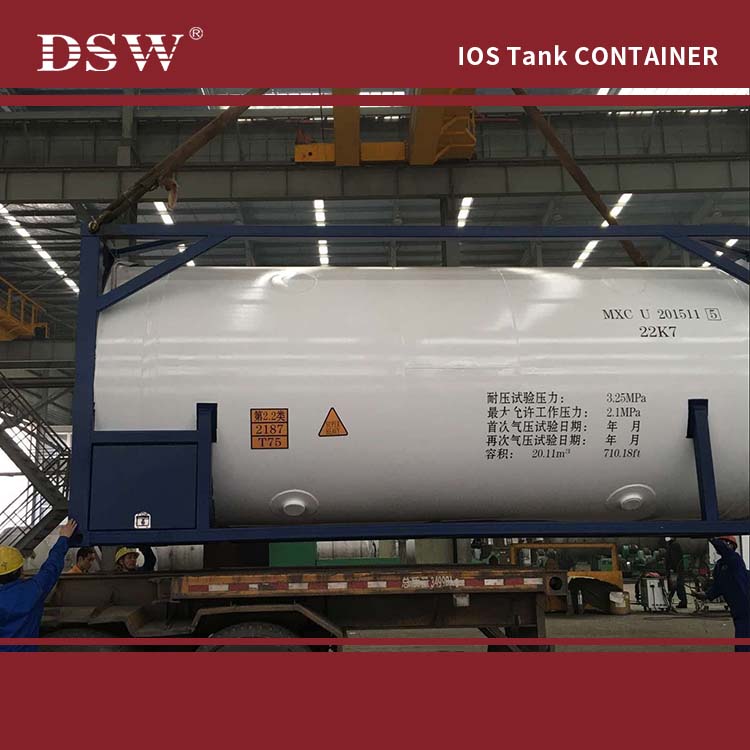

20FT ISO TANK Cryogenic tank

Application:

  • Fuel Stations
  • Oil and Energy
  • Mining
  • Rail
  • Large Bulk Storage
  • Truck Fleets
  • Ships
  • Power Generation
  • Industrial
  • Municipal
  • Peak Shaving

Cryogenic Transport Trailers

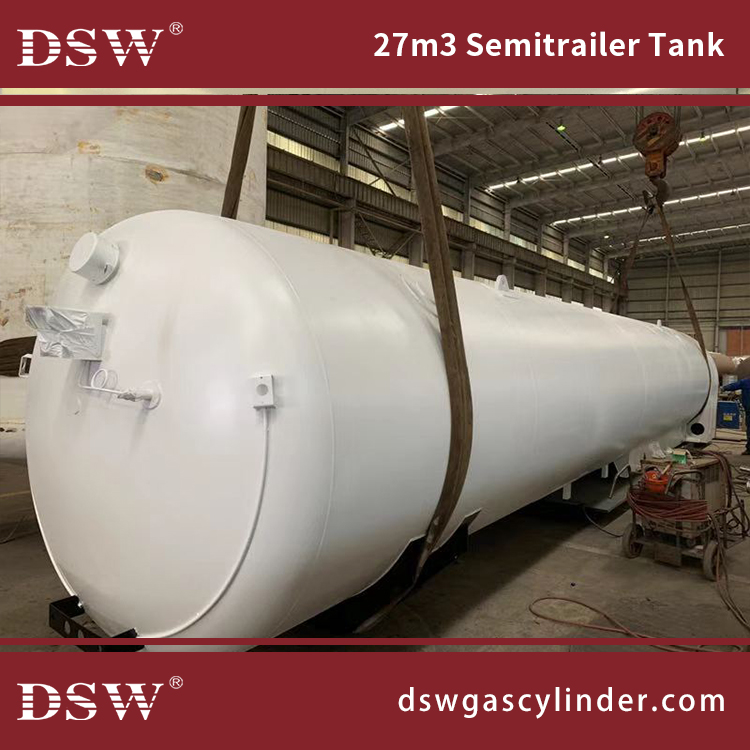

27M3 Semitrailer Tank Cryogenic Storage Tank

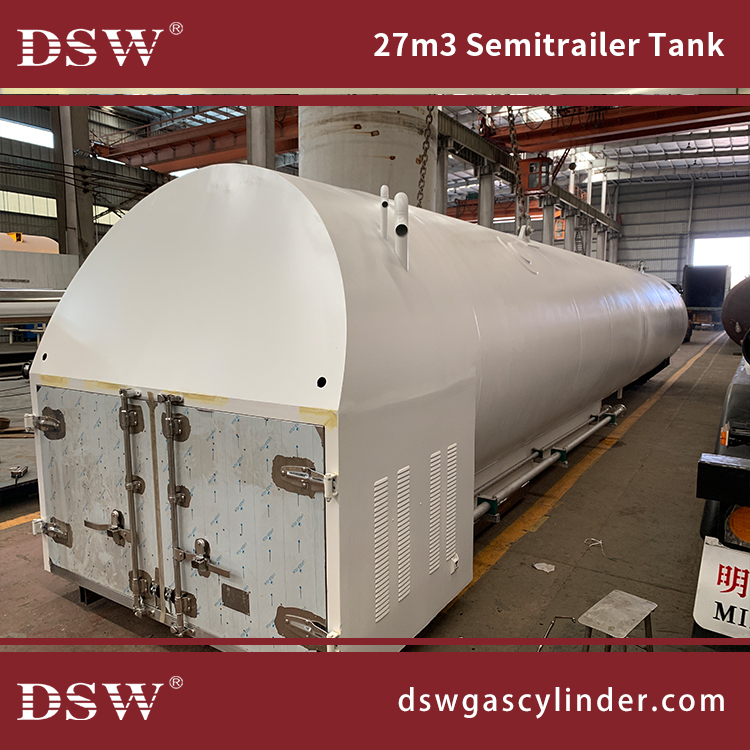

27M3 Semitrailer Tank Cryogenic Storage Tank

Cryogenic Transport Trailers

The cryogenic stationary tanks (27M3 Semitrailer Tank) are designed for long term storage of cryogenic liquefied gases under pressure.
Inner vessels are made of austenitic stainless steel and cold stretched for selected medium or high pressure models.
These tanks are available in vertical or horizontal arrangement and they can be used for LIN, LOX, LAR, LNG, CO2 and N2O.
