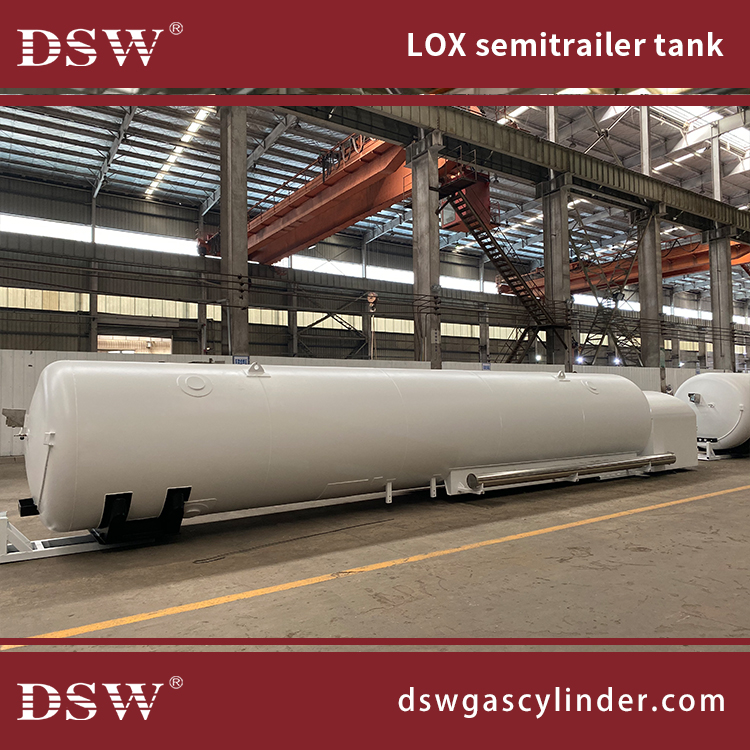

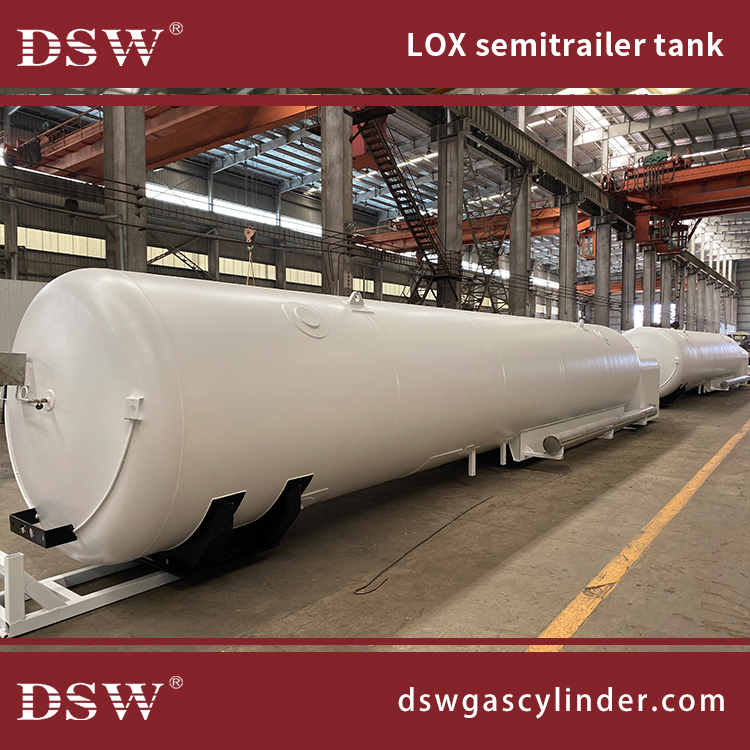

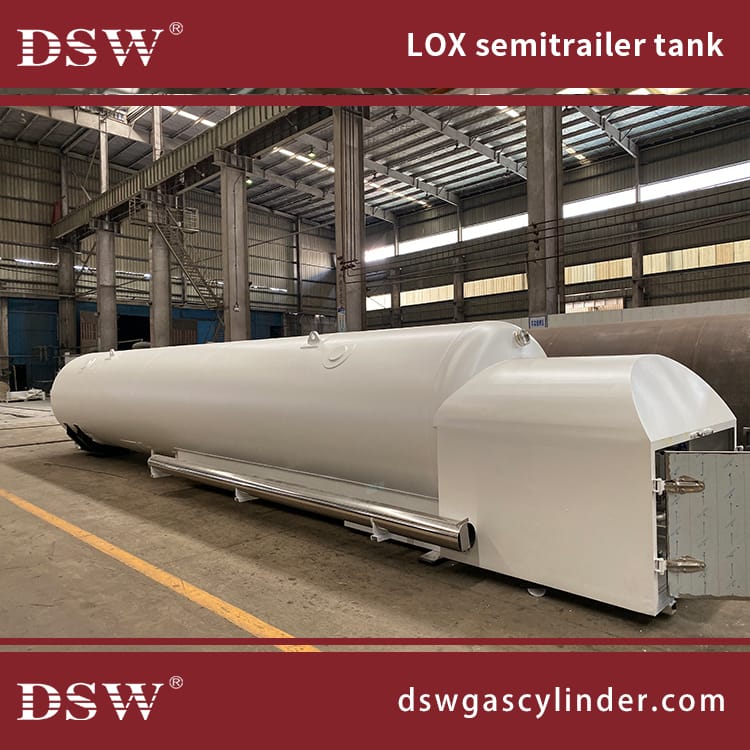

20M3 LOX semitrailer Tank

20M3 Cryogenic LOX semitrailer Tank

DSW’s liquid oxygen semi-trailers ensure safe, dependable delivery of LOX to these industries, enabling users to focus on their core operations without concerns about supply interruptions.
Our Liquid Oxygen (LOX) semitrailer tanks are built for safe, efficient bulk transport of cryogenic LOX over long distances.
Featuring vacuum-insulated, double-walled stainless steel construction, they deliver excellent thermal performance and minimal boil-off — even in the extreme heat of the Middle East and Southeast Asia.
Each tank meets or exceeds ISO, EN, ADR, and TPED standards, ensuring full compliance for international transport and seamless integration with global gas supply chains.

Liquid Oxygen Semi Trailer

The safe and efficient transport of cryogenic liquid oxygen

LOX semitrailer tanks are specialised cryogenic transport tankers designed to transport LOX safely at extremely low temperatures.
These tanks are built with high-strength stainless steel and feature a layered insulation system to maintain LOX at -183 °C, the temperature at which oxygen remains liquid.
The insulation reduces evaporation and minimises product loss during transport, making these trailers efficient and cost-effective for businesses requiring bulk oxygen supplies.
DSW offers liquid oxygen trailers with superior structural integrity, thermal efficiency, and low static evaporation rates, ensuring the secure and reliable delivery of LOX to various industries, including medical, aerospace, and industrial manufacturing sectors

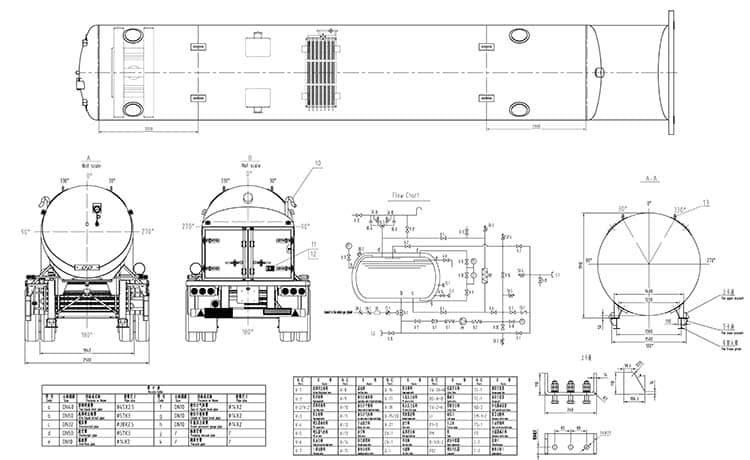

Construction of liquid oxygen semi-trailer with advanced cryogenic tank design

LOX Semi Tank Trailer: Key Features

The 20 m³ LOX semi-tank trailer is a high-capacity cryogenic tank ideal for transporting liquefied gases. DSW’s cryogenic semi-trailers serve multiple cryogenic liquids, including oxygen, argon, nitrogen, hydrogen, and helium, as well as gases stored at higher temperatures, such as LNG, carbon dioxide, and nitrous oxide.

Key specifications of the 20 m³ cryogenic LOX semi-trailer include:

  • Tank Capacity: 20,000 litres, providing ample storage for high-volume transport.
  • Material: High-strength stainless steel inner and outer tanks, ensuring durability and corrosion resistance.
  • Insulation: Multi-layer insulation with a vacuum layer, minimizing heat ingress and reducing product loss.
  • Durable Chassis: Heavy-duty semitrailer chassis built for regional road conditions
  • Safety Systems: Equipped with emergency shut-off valves, pressure relief valves, and advanced monitoring instrumentation
  • Low Static Evaporation Rates: Designed to maintain temperature stability and reduce oxygen loss over time.

These features make DSW’s LOX semi-trailer tank highly reliable and effective for industries that rely on consistent cryogenic liquid supply.

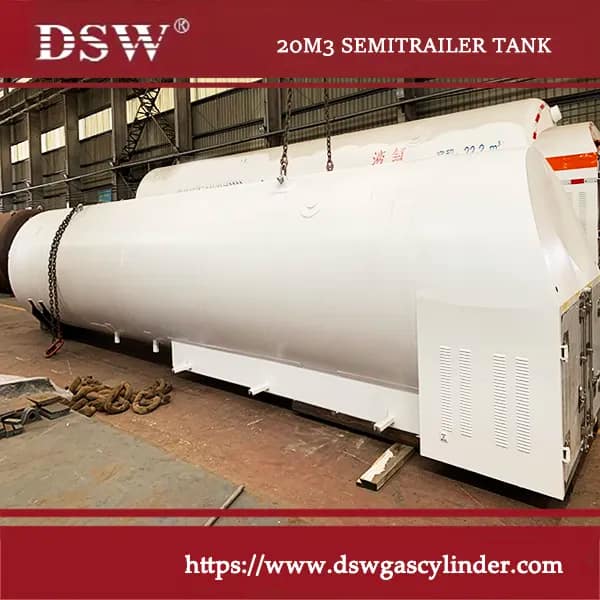

20M3 Cryogenic LOX semitrailer Tank

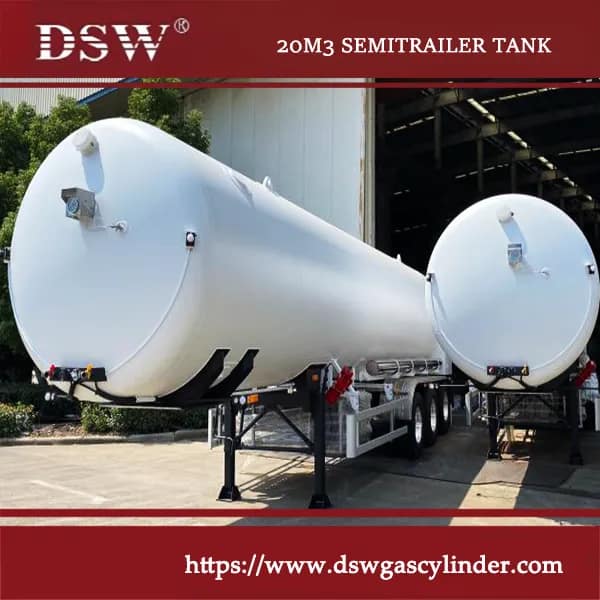

Liquid Oxygen Tanker Truck

Stainless steel inner and outer vessels.
Features & Specifications:

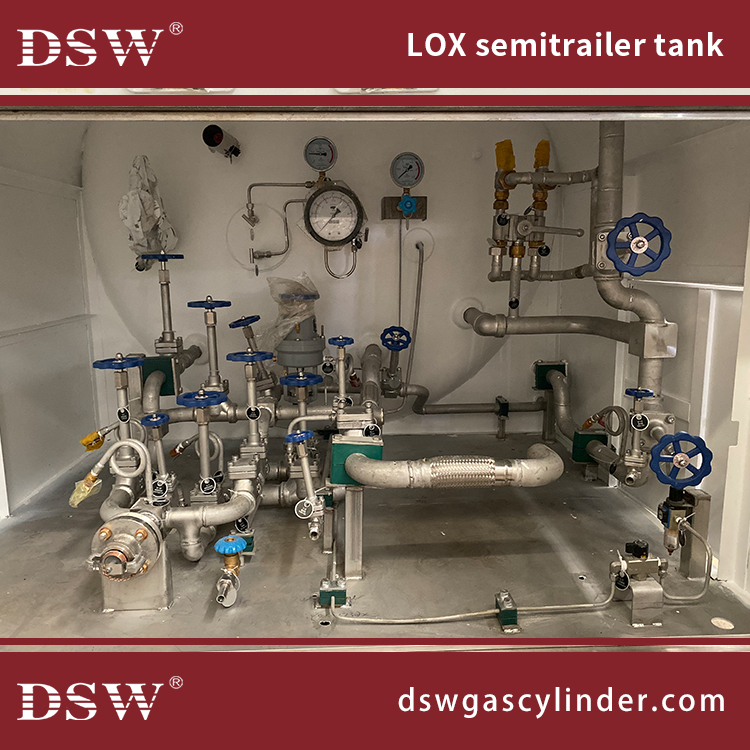

Ergonomic piping design
Best-in-class vacuum and hold times
Low centre of gravity
Rear side and centre cabinet
Various pressure stages
ADR, IMO, RID, ASME, EAC-TR (GOST)

20M3 Cryogenic LOX semitrailer Tank

20M3 Cryogenic LOX semitrailer Tank

20M3 Cryogenic Storage Tank , 20M3 LOX semitrailer Tank

20M3 Cryogenic LOX semitrailer Tank

20M3 Cryogenic LOX semitrailer Tank
DSW continues to offer the cryogenic semi-trailer through our subsidiary for LIN, LOX, LAR, LH2, LCO2, LN2O and LNG.

Available as full stainless steel, full aluminium, bi-metallic aluminium/stainless steel or bi-metallic carbon steel/stainless steel
Capacities from 2,000 to 67,000 litres
Pressure ranges from 3 to 24 bar
Design temperature -196C
Designed according to EN 13530/TPED or ASME VIII
Multi-layer super insulation with vacuum
All stainless steel pipe and valves
Automotive grade 3 finish, three layers according to customer specifications
The scope also includes pressure-building vaporizers, safety relief devices for inner and outer vessels, and complete plumbing arrangements for regular operation.

Application of LOX Trailer

Liquid oxygen (LOX) semi-trailers play a vital role across industries by transporting large quantities of LOX safely and efficiently. These trailers support essential sectors like healthcare, where they supply medical oxygen to hospitals; aerospace, providing rocket fuel; steelmaking, enhancing furnace temperatures; and water treatment, aiding in purification processes. They also serve the food industry for preservation, the chemical industry for production, and waste management for environmental cleanup.
