Industry Argon Gas
Argon is an inert gas used to stabilise the arc and improve welding performance. It is widely used in Gas Metal Arc Welding (GMAW) and is the primary gas for Gas Tungsten Arc Welding (GTAW) in industrial applications.
DSW offers a range of argon gas products, including high-pressure gas cylinders and liquid argon in dewars, available in various sizes to meet different industrial requirements.
Argon Specification
| PRODUCT NAME | PURITY | Valve | |
|---|---|---|---|
| Argon (Ar) | > 99.999% | ||
| Liquid Argon (LAR) | > 99.999% | ||
| Argon with a mixture of gas | |||

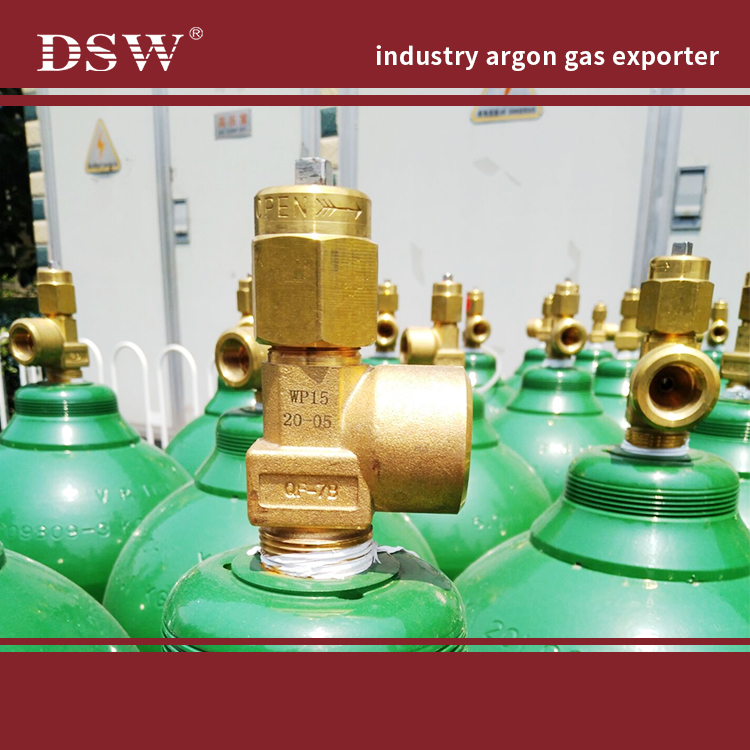

| Main Gas | Balance Gas | Valve | |
| Argon Gas | Helium: 1ppm-50% | CGA 580 | |
| Argon Gas | Hydrogen: 1ppm-50% | CGA 350 | |
| Argon Gas | Nitrogen: 1ppm-50% | CGA 580 | |

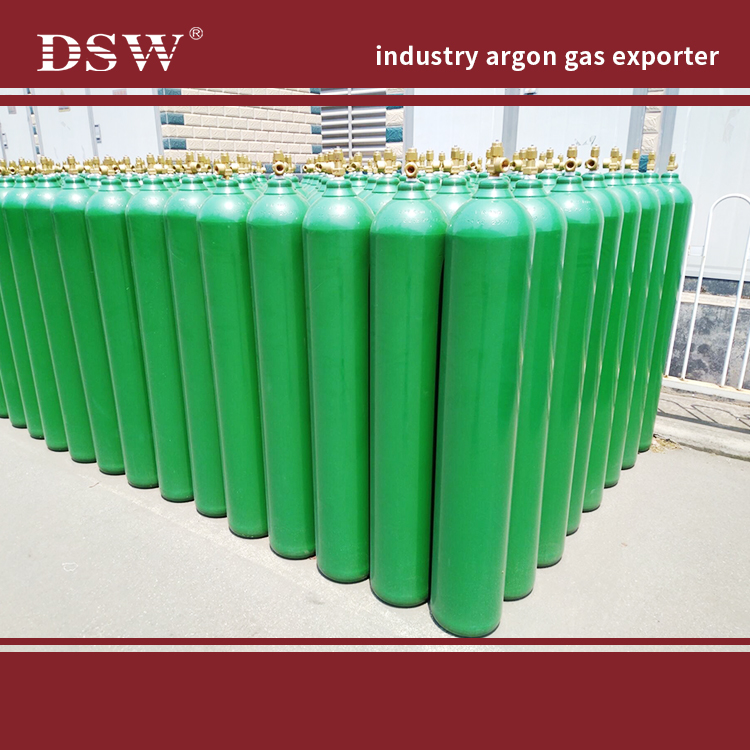

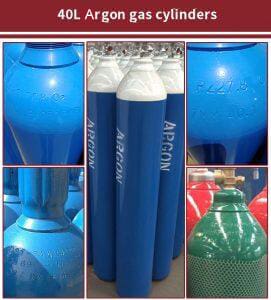

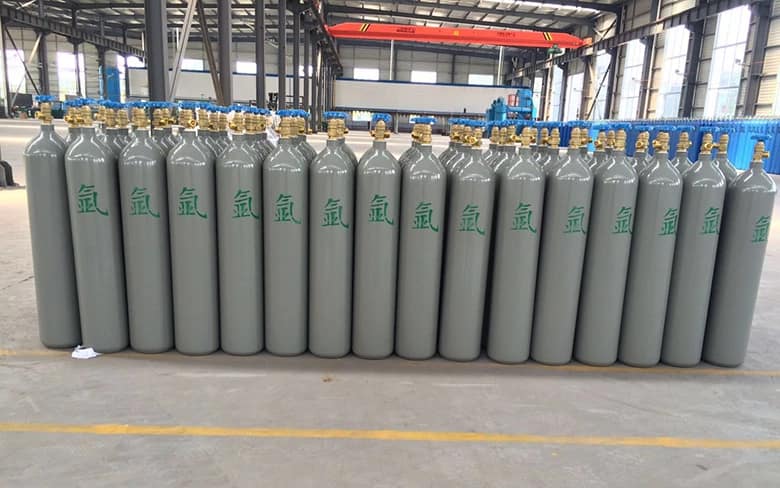

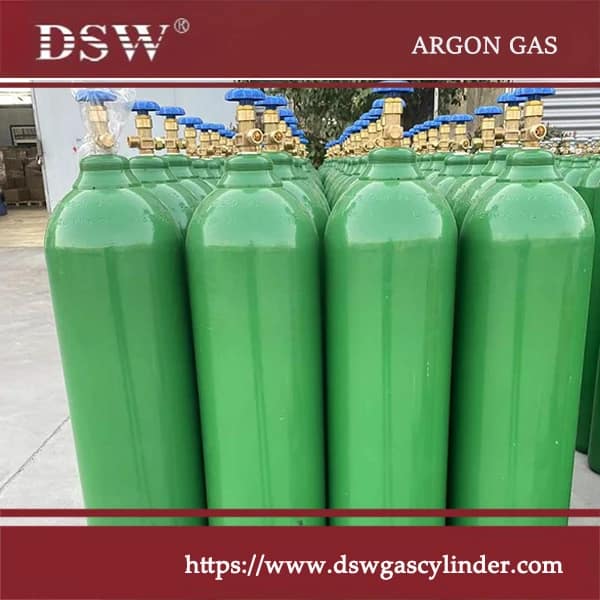

Sizes of Argon Gas Cylinder
| Size | 40L-150 Bar | 50L-150 Bar | 50L-200 Bar |
|---|---|---|---|
| Volume | 6M³ | 7.5M³ | 10M³ |
| Outside Diameter | 219mm | 232mm | 232mm |
| Height | 1333mm | 1420mm | 1420mm |
| Weight | 47.8kg | 52kg | 52kg |
| Working Pressure | 150BAR | 150BAR | 200BAR |
| Test Pressure | 250BAR | 250BAR | 300BAR |
| Material | 37Mn | 37Mn | 34CrMo4 |
| Wall Thickness | 5.7mm | 5.7mm | 5.7mm |
| Standard | ISO9809-3 | ISO9809-3 | ISO9809-1 |
Applications of Argon Gas
- Welding (GTAW, GMAW): Shielding gas for stronger, cleaner welds on metals like stainless steel, aluminum, and titanium.
- Metal Fabrication & Heat Treatment: Prevents oxidation during annealing, hardening, and tempering.
- Plasma Etching & Semiconductors: Ensures precision and purity in electronics manufacturing.
- Blanketing & Purging: Maintains oxygen-free conditions for storage tanks, pipelines, and food packaging.
- Laser & Lighting Technologies: Protects and cools laser processes; used in lamps and LEDs.
- Chromatography & Laboratory Use: Carrier gas and stable environment for analytical instruments.
- Cryogenics & Biotechnology: Liquid argon for ultra-low temperature storage, biological samples, and sterile processes.
Argon Supply Modes
- Gas Cylinders: High-pressure cylinders for small to medium volumes.
- Argon Dewars: Liquefied argon in insulated containers for small to medium volumes.
- MicroBulk Systems: Cost-effective solution for larger volumes, delivered in specially designed vessels.
- Bulk Deliveries: Large-scale supply using tube trailers or ISO containers.
- On-site Generation: For extremely high consumption or remote locations.
Benefits of Argon in Welding and Metal Fabrication
Argon is an inert, non-toxic, and nonflammable gas that protects metals during welding and heat treatment. Its shielding properties prevent oxidation and contamination, improve arc stability, and enhance weld strength and quality. Argon is essential for working with metals like stainless steel and titanium, ensuring superior mechanical properties.
Argon Gas Sourcing and Suppliers
Working with a reliable supplier is crucial. DSW provides high-purity argon in various cylinder sizes with multiple delivery options. We offer customized solutions, including gas blending, on-site supply systems, and technical support to optimize argon usage for welding, metal fabrication, electronics, and industrial processes.
