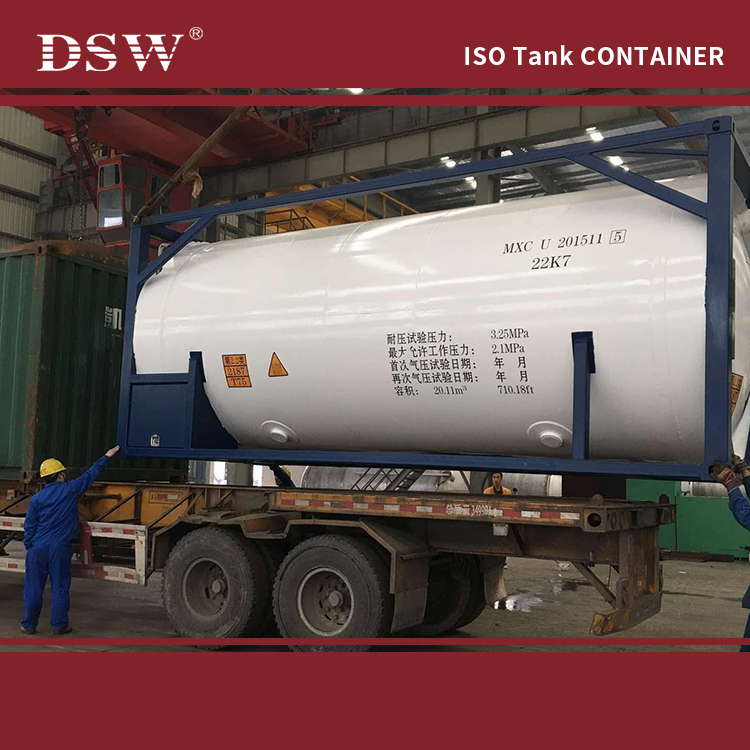

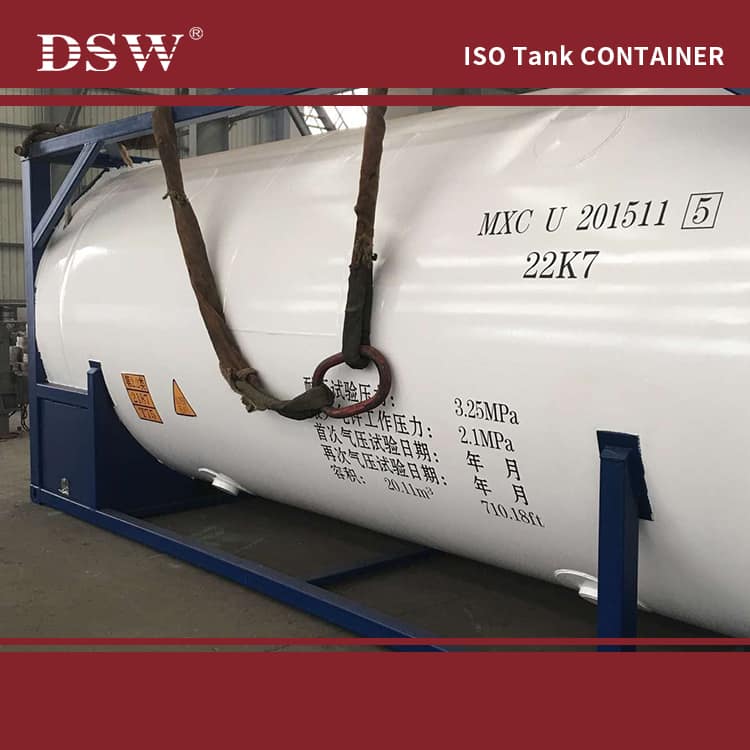

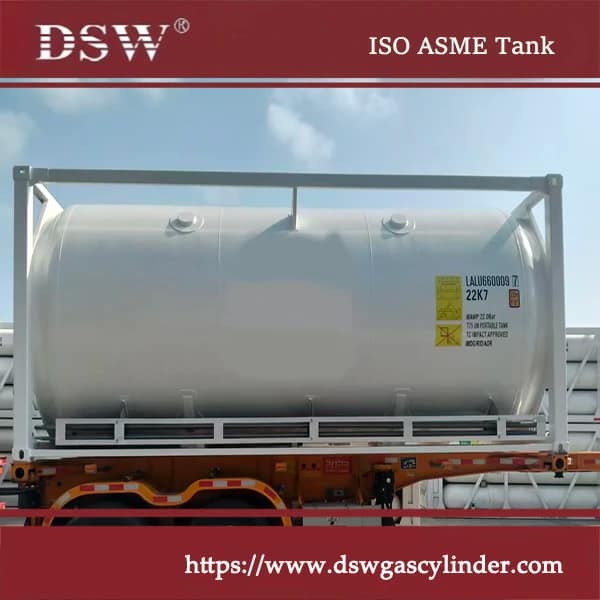

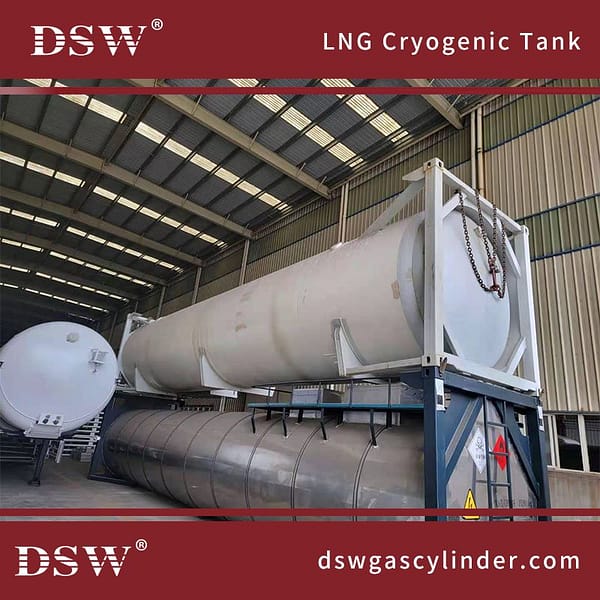

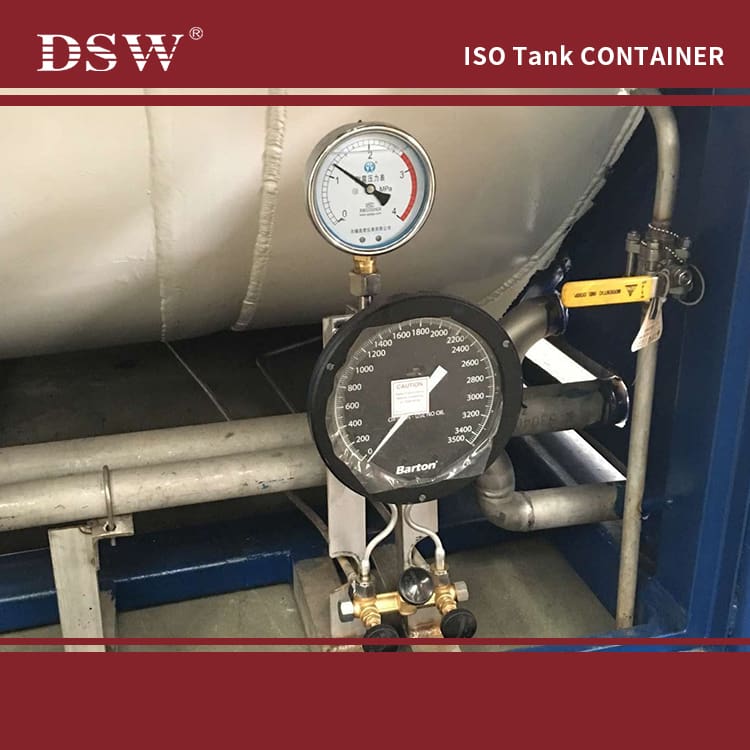

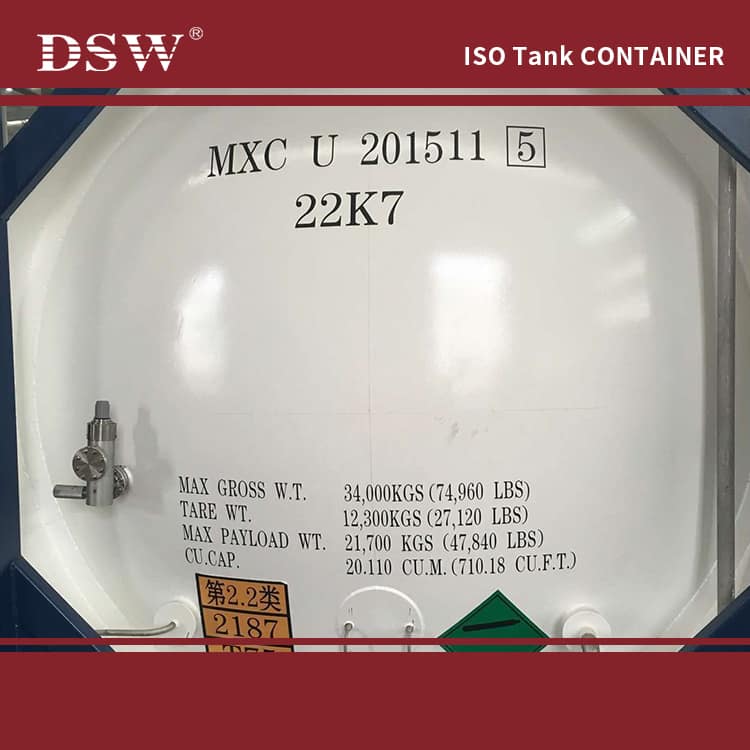

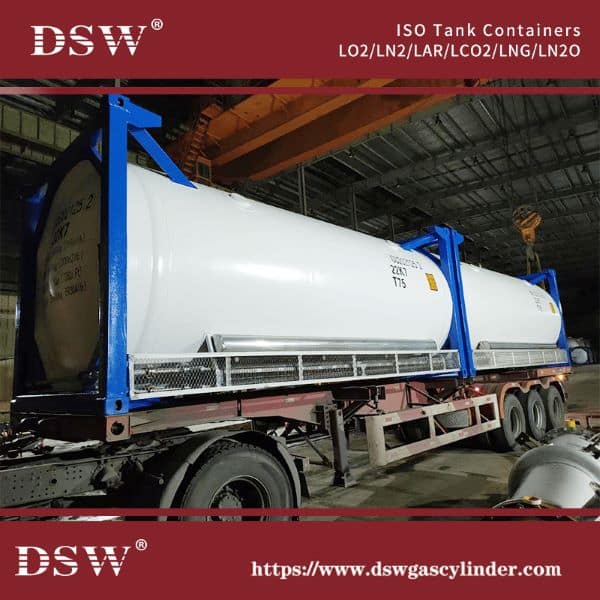

ISO ASME Tank CONTAINER
1. ISO ASME tank container technical spec
| Model：1CC-TCS-20000/16 Insulation type：Multi layer |
| NO |
Items |
Inner vessel |
Outer vessel |
| 1 |
Design pressure MPa |
1.6 |
-0.1（outer） |
| 2 |
Working pressure MPa |
1.6 |
-0.1（outer） |
| 3 |
MAWP MPa |
1.6 |
/ |
| 4 |
Design temperature ℃ |
-196 |
-19～50 |
| 5 |
Working temperature ℃ |
≥-196 |
normal |
| 6 |
Pneumatic test MPa |
1.6 |
HLD |
| 7 |
G. Vol m3 |
20.8 |
5.5(interlayer) |
| 8 |
E. Vol m3 |
19.76 |
/ |
| 9 |
Medium |
LOX/LIN/LAR |
Multi layer |
| 10 |
Main material |
S30408 |
Q345R |
| 11 |
Treatment |
Pickling and passivation |
Sanding and coating |
| 12 |
Corrosion allowance mm |
0 |
0 |
| 13 |
Joint efficiency |
1 |
0.85 |
| 14 |
Filling rate |
95% |
/ |
| 15 |
Static evaporation %/d |
≤0.22(by LOX), ≤0.35 (by LIN), ≤0.24 (by LAR), |
| 16 |
Seal off vacuum degree Pa |
≤1×10–2 |
| 17 |
Leakage of vacuum interspace Pam3/s |
≤1×10–6 |
| 18 |
ISO code |
22T7 |
| 19 |
Diameter mm |
Φ2150 |
Φ2400 |
| 20 |
External Dimensions mm |
6058×2438×2591 |
| 21 |
type |
Horizontal |
| 22 |
Tare weight Kg |
~7890 |
| 23 |
Fully loading weight Kg |
~15986(LIN), ~27585(LAR), ~22546(LOX) |
| 24 |
Design service life |
15years |
| 25 |
Open pressure for safety valve |
1.89Mpa |
| 26 |
Sort |
Ⅲ |
| 27 |
Portable tank guideline |
T75 |
Our cryogenic tanks are designed for the efficient, safe and long term storage of cryogenic liquefied
gases (liquid nitrogen, oxygen, argon and CO2).
Based on the double shells, vacuum-Perlite insulation design, which has available in capacities
from 20FT and 40FT with working pressures of 8 bar ,16bar and 22Bar.
