LNG Storage Tanks

LNG Storage Tank

LNG needs to be stored at temperatures around -162°C (-260°F).
The vacuum insulation helps minimise heat ingress, thereby reducing the amount of LNG that boils off and ensuring efficient storage.
Vacuum LNG tanks are designed to handle the pressure changes that occur due to the vaporization of LNG.

Benefits

Vacuum-jacketed and super insulated:
Combination pressure regulator:
Standard dual relief system:
Built to GB or ASME Sec. VIII, Div. 1 Specifications:
Welded stainless steel piping:

one set 5m3 liquid LNG tank load in one 20GP ;
one set 10m3 cryogenic LNG tank price load in one 40HQ with customized size
one set 15m3 vertical horizontal LNG storage tank load in one 40FR;

LNG Cryogenic Tanks – Liquid Natural Gas Storage Solutions

Optimizing Efficiency and Safety with Reliable LNG Storage
DSW has been providing LNG cryogenic tanks for liquefied natural gases since 2004.
Since then, DSW has sold over 2,000 LNG tanks with the highest-quality standard designs and individual solutions tailored to customer requirements.
DSW’s Vacuum LNG tanks have capacities ranging from 3,000 to more than 100,000 and feature standard operating pressures of 18 bar, 22 bar, or 36 bar, respectively.

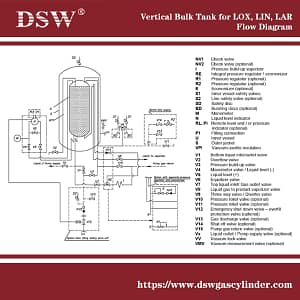

LOX cryogenic tanks，LIN cryogenic tanks，LAR cryogenic tanks — LOX cryogenic tanks， LIN cryogenic tanks， LAR cryogenic tanks

LNG Tanks

Unparalleled Storage Capacity and Performance

Diverse Tank Options: We offer a wide selection of LNG storage tanks, ranging from 89m³ to 1225m³, available in horizontal and vertical configurations to suit your specific needs and site constraints.
Outstanding Thermal Efficiency: Our tanks feature a lightweight stainless-steel inner vessel encased in a robust outer jacket. Combined with superior vacuum insulation technology, this design minimizes heat transfer, ensuring extended LNG hold times and minimal product loss.

The DSW Plant is certified according to:
– AN ISO 9001/2000
– ASME (U, U2, R-Stamp)
– Manufacture license of special equipment
People’s Republic of China and others

The Pressure Equipment Directive EU 97/23/EC and EN 13458 manufacture and test the pressure vessels.
These codes are internationally accepted. Consequently, installing and using these tanks in and outside China will be much easier than before.

LNG Cryogenic Tank specifications

Vacuum Powder Heat Insulation

Parameter	Inner tank	Outer tank
Design pressure (MPa)	0.84	-0.1
Loading Medium	LNG, LCO2
Material	16MnDR	Q235-B
Interlayer	Brilliant Expansion Perlite
Temperature (°C)	-196	50
Test pressure (MPa)	1.1
Leak test	helium test

Liquid Natural Gas Tanks (vertical type, sizes)

Model	Effective Volume (M3)	Working Pressure (MPa)	Static Evaporation Per Day (%/d)	Weight Inner tank (kg)	Weight Total (kg)	Size Diameter x Length x Thickness (mm)
DSWV-5/0.8	5	0.8	0.65	1040	4430	Φ1400×3680×6 / Φ1900×5115×8
DSWV-10/0.8	10	0.8	0.55	1980	7230	Φ1700×4950×8 / Φ2200×6400×8
DSWV-15/0.8	15	0.8	0.53	2735	9080	Φ1900×5905×8 / Φ2400×7330×8
DSWV-20/0.8	20	0.8	0.5	3575	11010	Φ2100×6465×8/10 / Φ2600×7955×8
DSWV-30/0.8	30	0.8	0.44	5300	16440	Φ2400×7410×10 / Φ3000×8930×10
DSWV-50/0.8	50	0.8	0.35	8705	25870	Φ2600×10380×10/12 / Φ32000×12000×12
DSWV-100/0.8	100	0.8	0.25	16140	48765	Φ3000×15425×12/14 / Φ3600×17260×14

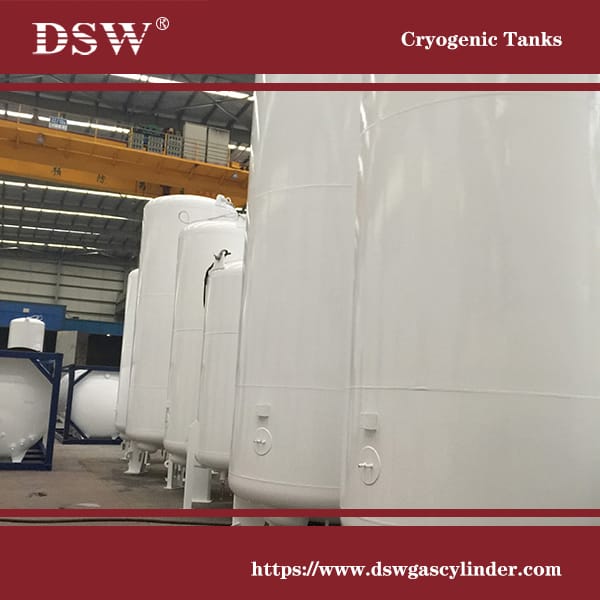

The Cryogenic Tank temporarily stores cryogenic liquefied gases under pressure. The inner vessels are made of austenitic stainless steel and cold-stretched for selected medium/high-pressure models. These tanks are also available vertically or horizontally and can be used for LIN, LOX, LAR, LNG, CO2, and N2O.
