CGA580 Cylinder Valves
INERT GAS VALVE – CGA580, 3/4″ NGT – ARGON, HELIUM, NITROGEN

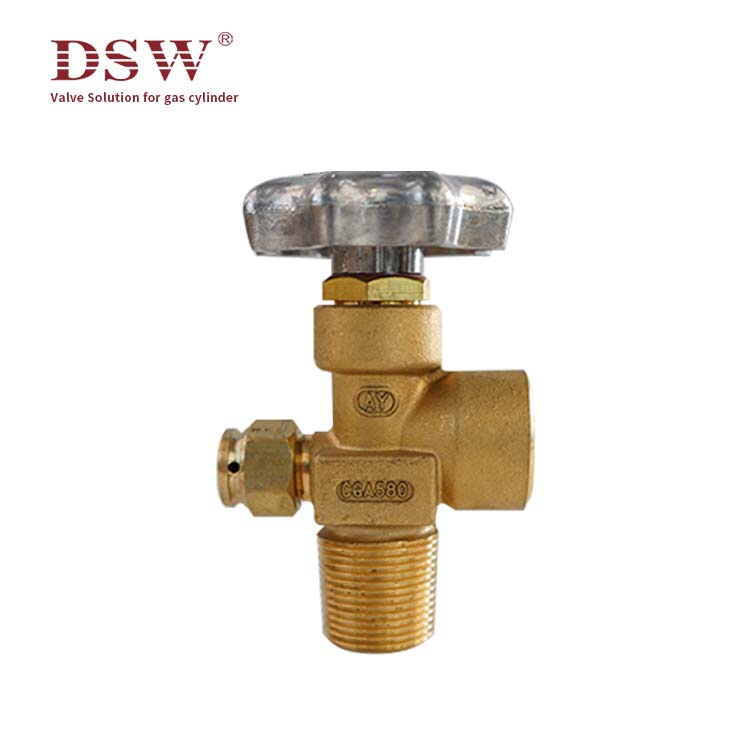

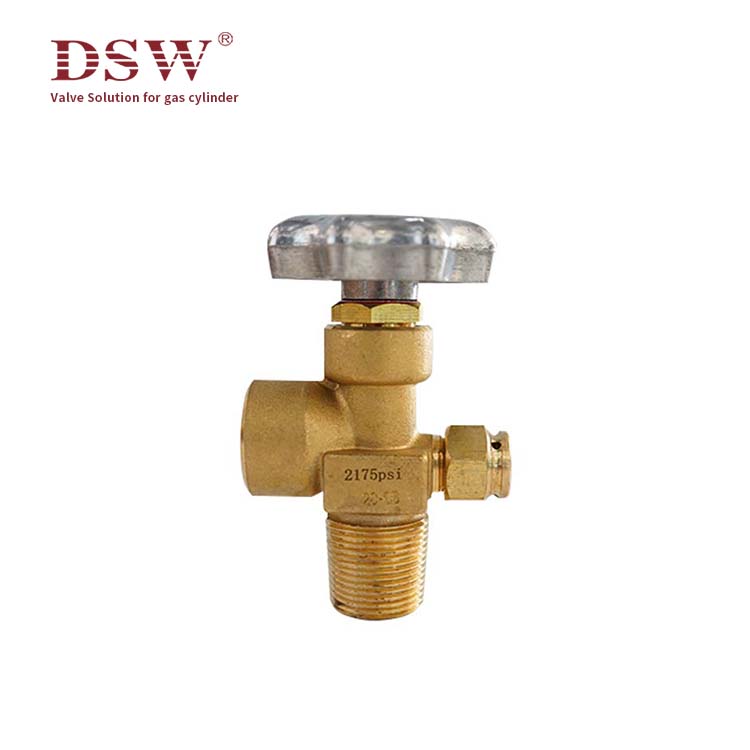

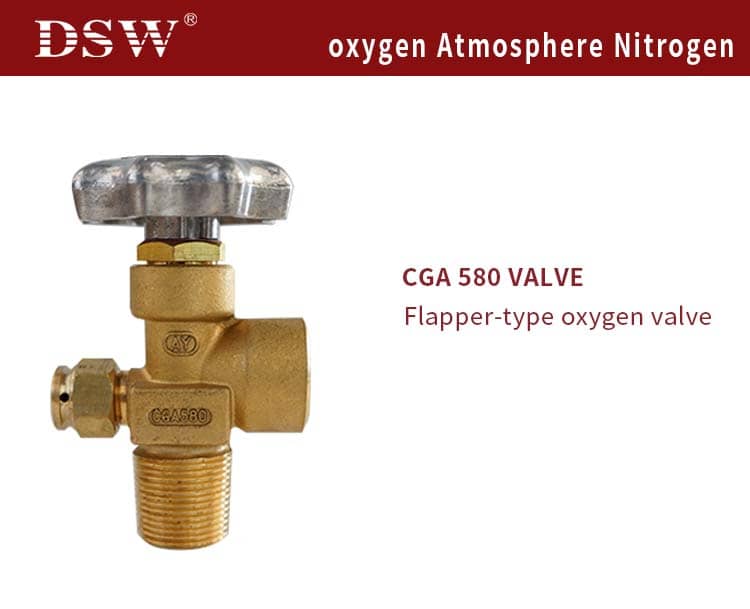

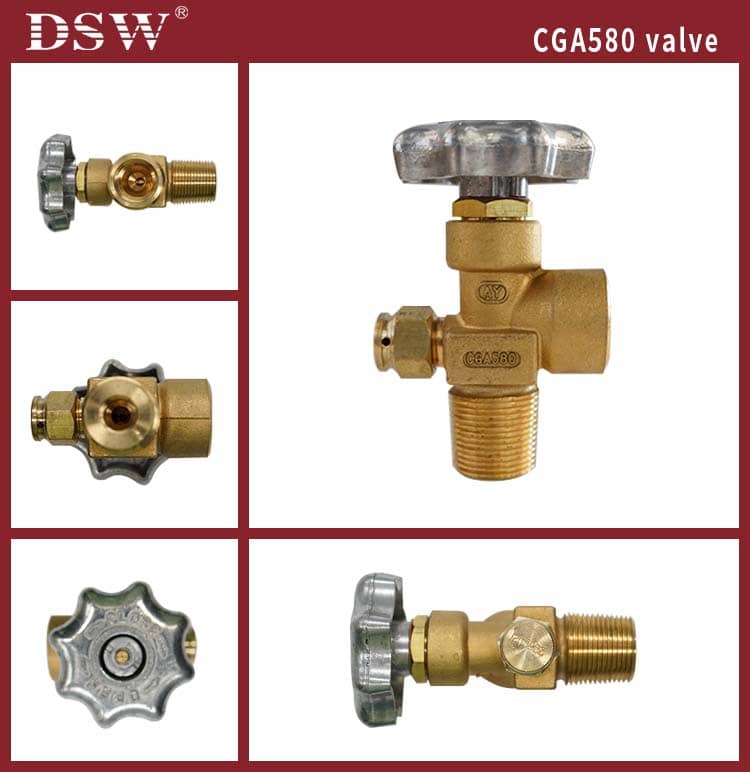

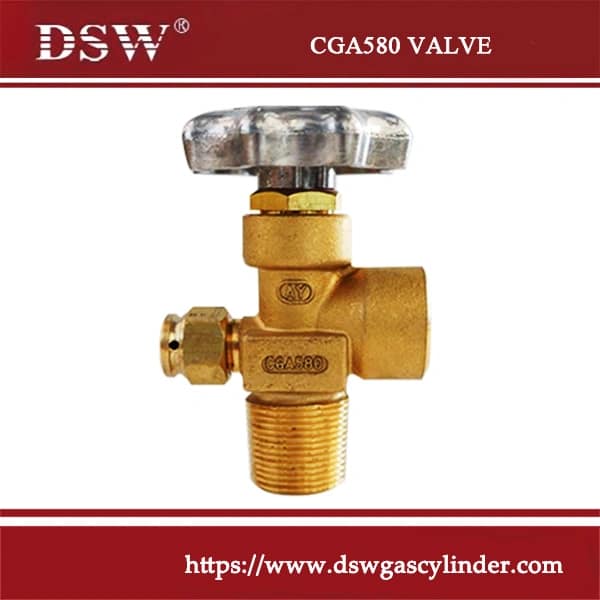

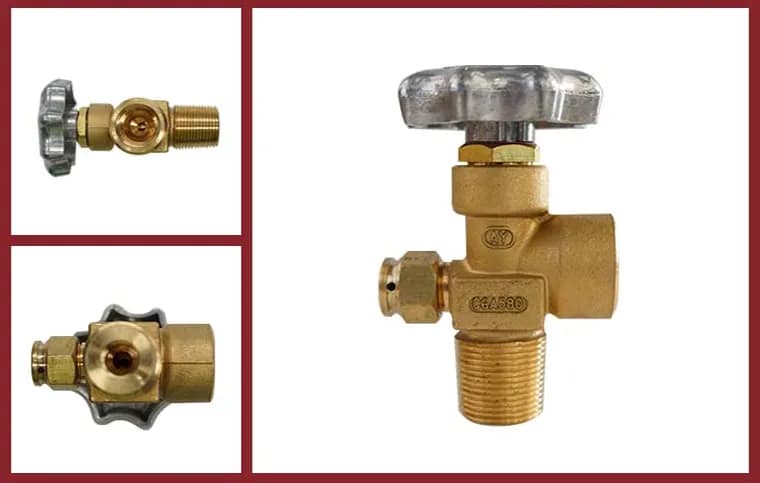

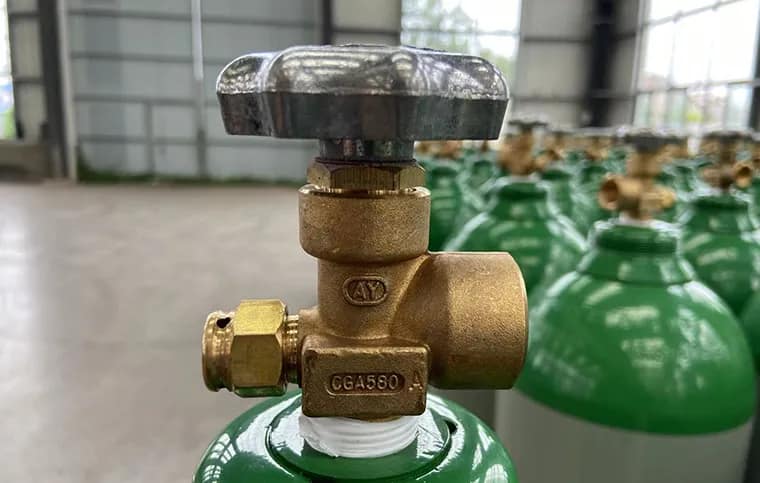

This DSW inert gas valve is made from heavy-duty forged brass and is specifically designed for use with argon, helium, or nitrogen in steel inert gas cylinders.
This inert gas valve has a CGA580 valve outlet with a 3/4″ NGT inlet and a safety (burst disc).
Valve Size Chart

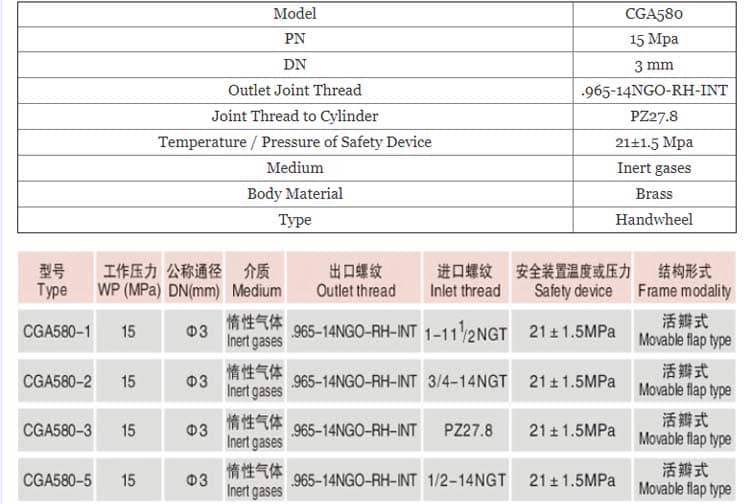

| Parameter | Value |
|---|---|
| Model | CGA580 |
| CGA Number | CGA580 |
| PN (MPa) | 15 |
| DN (mm) | 3 |
| Outlet Joint Thread | .965-14NGO-RH-INT |
| Joint Thread to Cylinder | PZ27.8 |
| Temperature / Pressure of Safety Device | 21+1.5 MPa |
| Medium | Inert gases |
| Body Material | Brass |
| Type | Handwheel |
| Type | WP (MPa) | DN (mm) | Medium | Outlet Thread | Inlet Thread | Safety Device | Frame Modality |
|---|---|---|---|---|---|---|---|
| CGA580-1 | 15 | 3 | Inert gases | 965-14NGO-RH-INT | 1-11½NGT | 21+1.5 MPa | Movable flap type |
| CGA580-2 | 15 | 3 | Inert gases | 965-14NGO-RH-INT | 3/4-14NGT | 21+1.5 MPa | Movable flap type |
| CGA580-3 | 15 | 3 | Inert gases | 965-14NGO-RH-INT | PZ27.8 | 21+1.5 MPa | Movable flap type |
| CGA580-5 | 15 | 3 | Inert gases | 965-14NGO-RH-INT | 1/2-14NGT | 21+1.5 MPa | Movable flap type |
Specifications:
- Outlet Connection: Configured with a CGA 580 fitting, compliant with industry standards for inert gases.
- Inlet Connection: Equipped with a 3/4″ NGT (National Gas Taper) thread, ensuring secure and precise attachment to compatible gas cylinders.
- Maximum Operating Pressure: Rated for up to 3360 psi (21 MPa), designed for safe and reliable performance under high-pressure conditions.
Features:
Pressure Relief Device (PRD): Pressure relief device
Automated Assembly and Testing: Ensures high quality.
Helium Leak Tested: Ensures gas containment. 100% helium leak tested
Heavy-Duty Construction: Heavy-duty forged brass body for durability and high-pressure
Precisely machined internal components meet the most stringent international valve performance standards
Pressure Relief Device (PRD) is a unitized plug design that provides excellent flow characteristics and ensures proper assembly and tamper resistance
Metal-to-Metal Seal: Metal-to-metal seal below bonnet threads prevents pressure in the threads at the top of the valve body
Direct-drive stem design with optimized O-ring (GV) or double O-ring (GVHM) seal reduces friction and operates at deficient torque levels
Tapped for the dip tube as required
Common Applications:

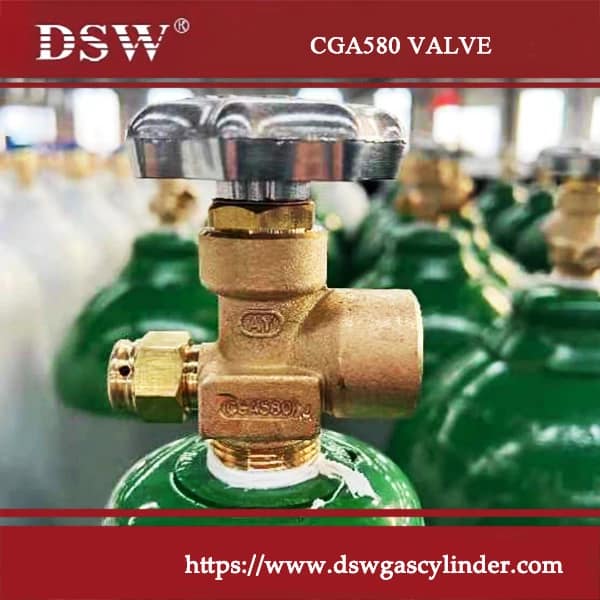

The CGA580 valve is widely used across various sectors due to its reliability and compatibility with inert gases.
- Welding: Frequently employed in welding applications to ensure a secure and consistent gas supply.
- Industrial Processes: Used in numerous industrial operations that require inert gases.
- Specialised Gas Applications: Commonly applied for high-purity or specialty gases, including:
- High-purity argon, nitrogen, and oxygen
- Certain laboratory gases
- Industrial gases requiring specific fittings
The exact application of a CGA580 valve will depend on the type of gas and the regulator in use.
Safety Notice: CGA580 valves must be installed by a qualified cylinder technician. Compressed gas cylinders and valves are hazardous. Always observe proper safety precautions.
