Oxygen Bottle portable

5L Hospital Oxygen Tanks

DSW Medical oxygen bottles are offered in a wide variety of hospital oxygen cylinder sizes to meet your volume requirements or particular working environment.
ISO9809-3, TPED approval 5L portable oxygen cylinder filled with  Hydrogen, Argon, Helium, CO2, and Nitrogen Gas.

Portable Oxygen Bottle

A portable oxygen bottle is a small, lightweight container designed to store and provide supplemental oxygen to individuals who require it for medical reasons.
DSW oxygen bottles are available in a wide range of sizes and capacities, and there are plenty of customisation options. Each of these cylinder varieties has a different pressure.

5L oxygen cylinders,Medical Oxygen Cylinders

Portable oxygen bottles are often used by people with respiratory conditions that impair their ability to absorb enough oxygen from the air, such as chronic obstructive pulmonary disease (COPD), emphysema, or pulmonary fibrosis. The portability aspect is particularly beneficial for those who wish to travel, go out for errands, or move around their home without being tethered to a larger, stationary oxygen system.

5L oxygen cylinders,Medical Oxygen Cylinders

The construction of a portable oxygen bottle

Material: Portable oxygen bottles are often made from aluminum because they are lightweight and durable.
The starting material is usually a single sheet of aluminum, such as 6061 aluminum, which is then formed into a cylinder shape.

Formation of the Cylinder: The aluminum sheet is formed into a cylinder shape, and the ends are sealed.
The cylinder is then heat-treated through solution heat treatment and artificial ageing to enhance its strength and durability.

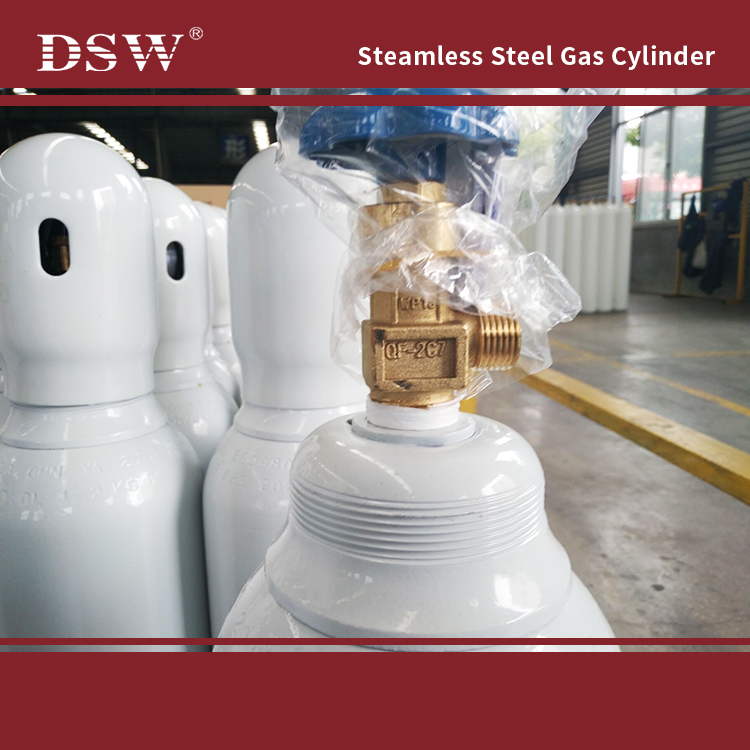

Neck Configuration: The top of the cylinder, known as the neck, is configured with threads, an o-ring gland, and a top surface that serves as a sealing surface.
These are machined into the cylinder to ensure a tight seal and prevent oxygen leakage.

Valves and Regulators: A valve is attached to the cylinder to control the release of oxygen.
A regulator may also be attached to adjust the oxygen flow rate to the user’s requirements.
Some portable oxygen bottles may include an Oxygen Conserving Device (OCD) that regulates flow during inspiration only, conserving oxygen during exhalation and allowing the cylinder to last longer.

Safety Features: Portable oxygen bottles are equipped with safety features such as pressure gauges to monitor the amount of oxygen left in the cylinder and safety relief valves to prevent excessive pressure buildup.

Accessories: Additional accessories may include a carrying handle or strap for easy transport and a nasal cannula or mask for delivering oxygen to the user.

5L oxygen cylinders,hospital oxygen cylinders

5L oxygen cylinders,Medical Oxygen Cylinders

5L oxygen cylinders,hospital oxygen cylinders

5L oxygen cylinders,Medical Oxygen Cylinders

5L oxygen cylinders,Medical Oxygen Cylinders

5L oxygen cylinders,Medical Oxygen Cylinders

5L oxygen cylinders,hospital oxygen cylinders
DSW oxygen bottles are available in a range of sizes and capacities, and there are plenty of customisation options and each of these cylinder varieties has a different pressure.
