Description

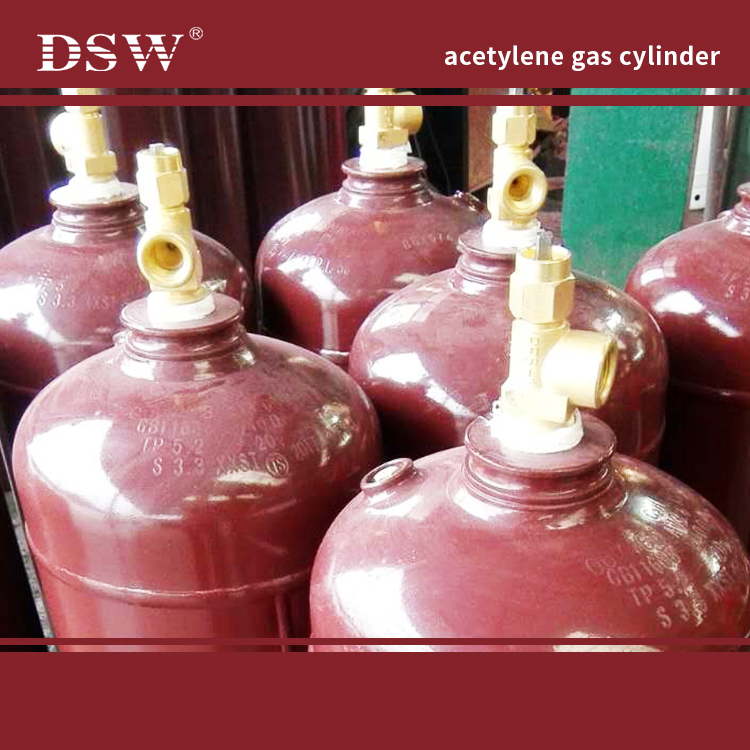

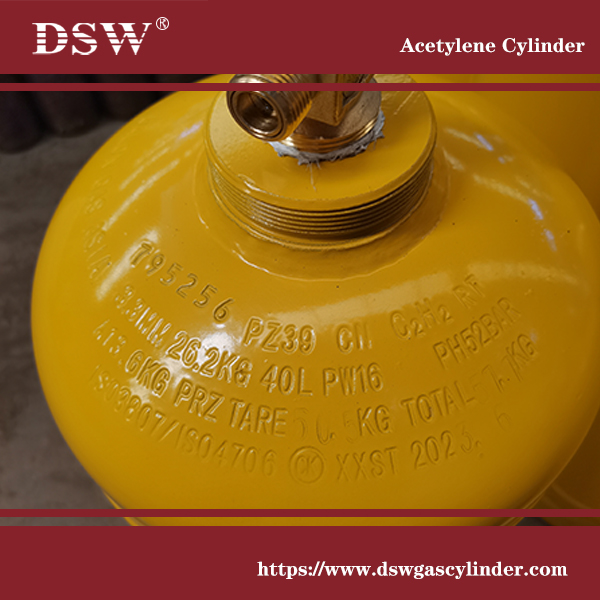

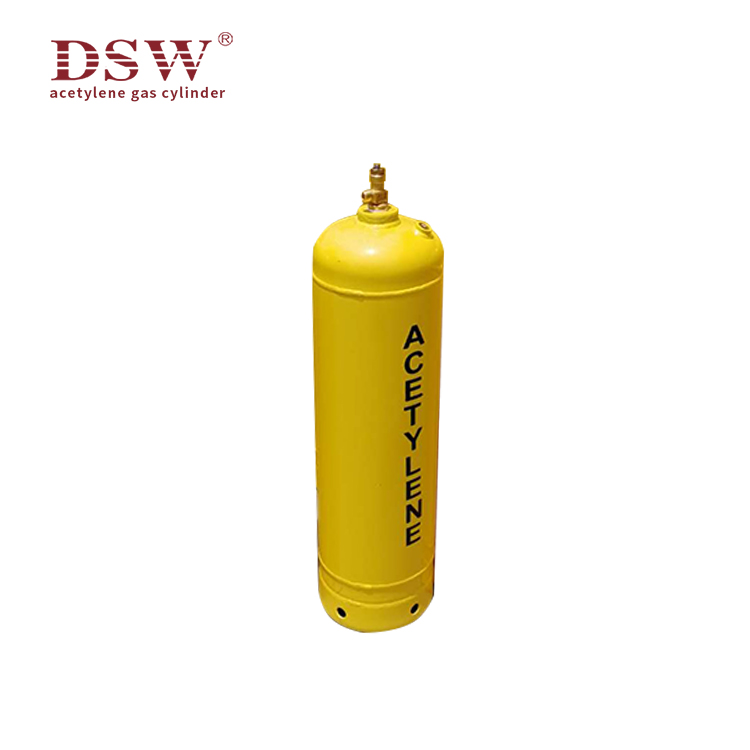

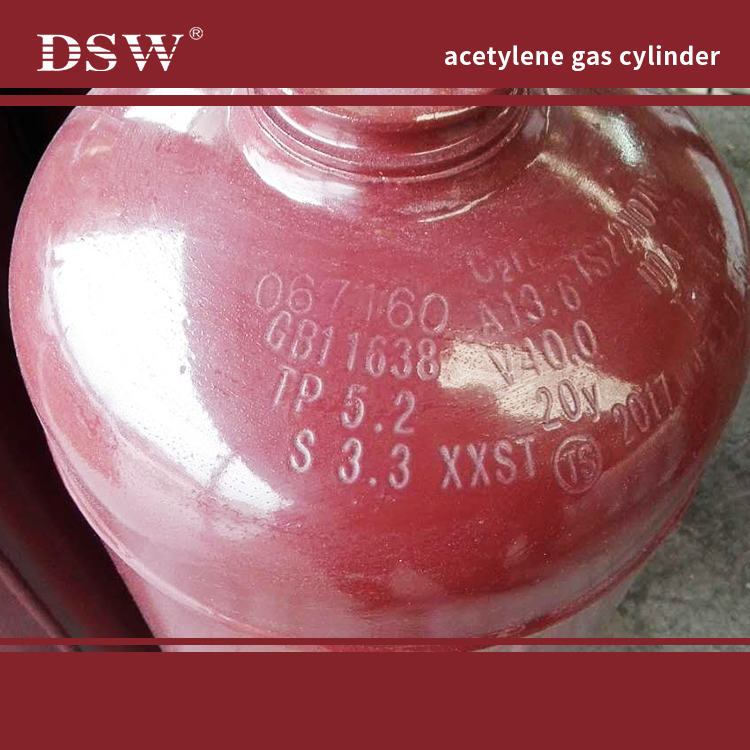

40Liter Acetylene Cylinder
Model Number: ISO250-40-3
Water capacity:40L

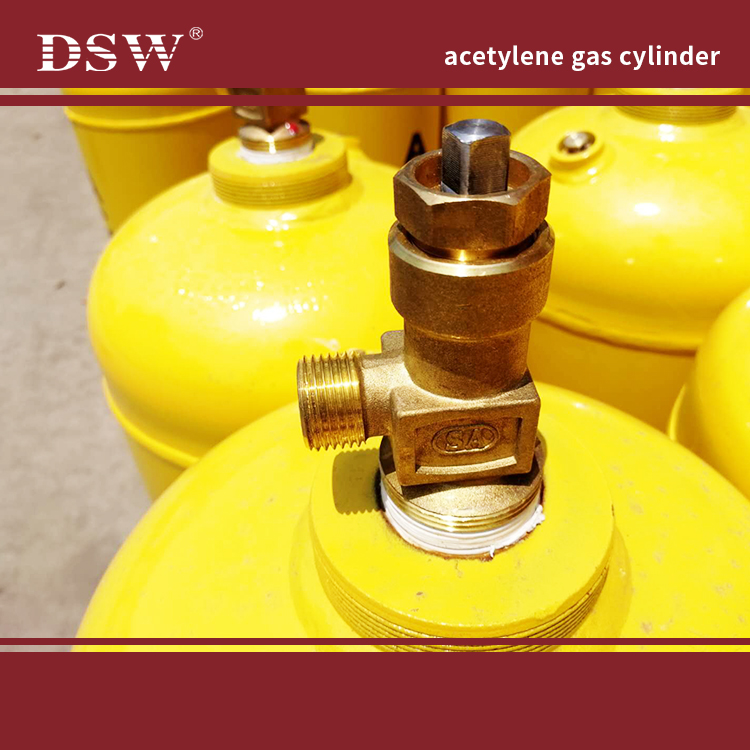

Valve:QF-15A14
Cylinder Standard:ISO3807:2013
Diameter:250mm
Height:1035mm
Thickness of seamless:4.0mm
weight of seamless: 39kg
working pressure:3MPa
test pressure: 5.2MPa
| Iterm | Unit | Types | ||||||
| Nominal water capacity | Litres | 40L | 60L | 25L | 12.5L | 7.5l | 2L | |
| Nominal diameter | MM | 250 | 310 | 235 | 200 | 152 | 108 | |
| Wall Thickness | MM | 4 | 4 | 4 | 3 | 3 | 3.2 | |
| Height (mm) | MM | 1040 | 1100 | 800 | 600 | 620 | 310 | |
| Cylinder Weight (without acetone) | KG | 39 | 51 | 27 | 13.5 | 10.5 | 3.2 | |
| Acetylene Max Filling Weight | KG | 6.5 | 10.8 | 4.5 | 2.2 | 1.3 | 0.3 | |
| Limited filling pressure(15℃) | MPa | 1.56 | ||||||

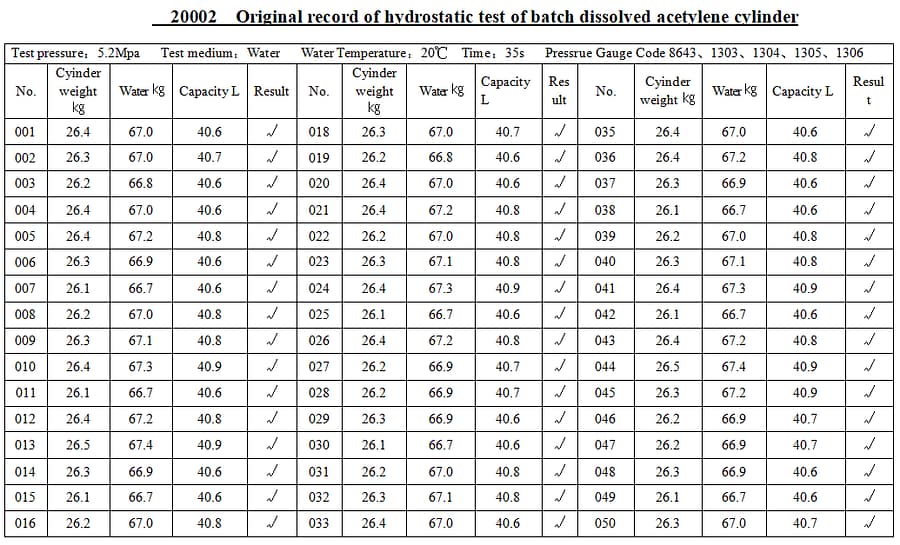

| Hydraulic test pressure | MPa | 5.2 | ||||||
| Sealing test pressure | MPa | 3 | ||||||
| Porous mass
propery |
Compressive strength | N/nm2 | ≥1.8 N/nm2 | |||||
| Porosity | % | 90-92% | ||||||
| The axial space | MM | ≤2.5 | ||||||
| Solvant | Acetone | |||||||
| Maximum working temperature | ℃ | 40 | ||||||
| Valve | QF-15 valve or customer request | |||||||

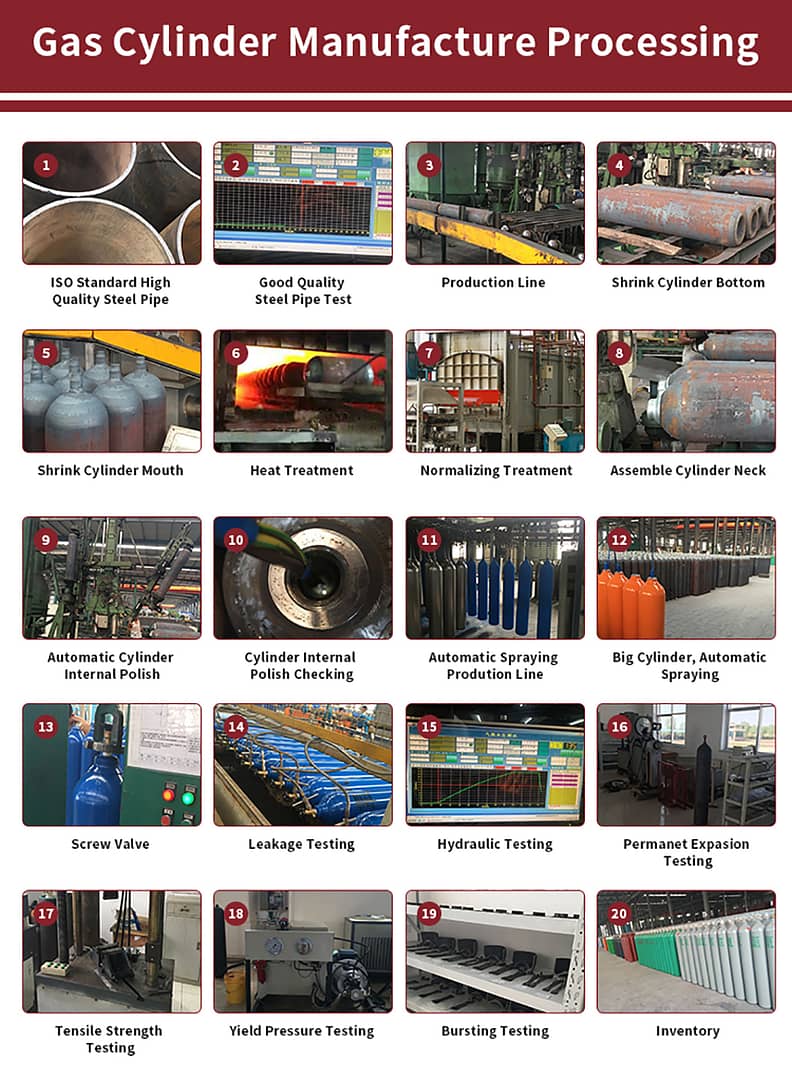

DSW has rich experience in developing and sourcing by on time service in the specification and quantities you require., and own capability of processing various gas cylinders.
40L Acetylene Cylinder
have adopted certifications of ISO by International Standardization Organization, DOT of America, TC of Canada, TUV of Germany, KGS of Korea and some other certifications.
DSW enjoy reputation as an industry leader in quality and performance which help us to sell industry gas cylinders and Cryogenic Tanks all over the world.
