Liquid medical oxygen (LOX) is an important oxygen source for hospitals and healthcare facilities that require a reliable bulk oxygen supply. Stored as a cryogenic liquid, LOX can be converted into gaseous oxygen and distributed through a centralized medical gas pipeline system.
Common applications of liquid medical oxygen include respiratory care, emergency medicine, intensive care units, operating rooms, neonatal care, hospital wards, and other healthcare areas that require a continuous medical oxygen supply. For facilities with relatively high oxygen demand, a bulk LOX system can provide centralized storage and distribution while reducing dependence on individual high-pressure cylinders.
A typical hospital liquid oxygen system consists of a vacuum-insulated cryogenic storage tank, vaporization equipment, pressure-control components, safety devices, and a medical gas distribution system.
What Is Liquid Medical Oxygen?
Liquid medical oxygen is oxygen that has been cooled to a cryogenic temperature so that it can be stored in liquid form. Oxygen has a boiling point of approximately -183°C at atmospheric pressure, so LOX must be stored in specially designed cryogenic equipment with effective thermal insulation.
In healthcare applications, liquid oxygen is stored in bulk tanks or other suitable cryogenic storage equipment. When oxygen is required, the liquid is vaporized into gaseous oxygen and supplied to the healthcare facility’s medical gas pipeline system.
Medical oxygen is different from ordinary industrial oxygen in terms of its intended use and applicable quality and regulatory requirements. WHO describes medicinal oxygen as an essential medicine and notes that its quality, purity and handling are subject to applicable pharmaceutical and medical-gas requirements.

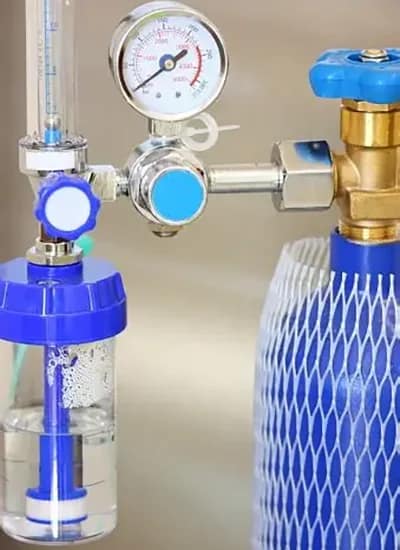

Applications of Liquid Medical Oxygen
Respiratory Care
Medical oxygen is commonly supplied for patients who require supplemental oxygen or respiratory support. In hospitals, oxygen can be delivered from a centralized medical gas pipeline to outlets located in patient-care areas.
Bulk LOX storage can provide a continuous oxygen source for facilities with substantial and relatively predictable oxygen demand.
Emergency Medicine
Emergency departments require dependable access to medical oxygen for acute patient care and respiratory support. A centralized oxygen supply system can distribute oxygen to treatment areas without requiring individual cylinders at every point of use.
For hospitals using bulk LOX, the storage tank and associated supply equipment form an important part of the facility’s overall oxygen infrastructure.
Intensive Care Units
Intensive care units can have significant oxygen demand because respiratory-support equipment and other clinical applications may require a continuous supply.
Liquid oxygen storage systems can provide a high-volume source that is converted into gaseous oxygen and distributed through the hospital medical gas pipeline system.
Operating Rooms
Medical oxygen is also supplied to operating rooms and other areas where oxygen is required as part of clinical and respiratory-support equipment.
For hospitals with centralized medical gas infrastructure, oxygen from a bulk LOX system can be vaporized and supplied through the facility’s pipeline network to designated clinical outlets.
Neonatal and Pediatric Care
Neonatal and pediatric departments may require controlled medical oxygen supply for respiratory support and other clinical applications. Oxygen delivery in these areas must be managed according to the healthcare facility’s clinical procedures and applicable medical-gas requirements.
A centralized oxygen system can provide oxygen through dedicated pipeline outlets while the hospital manages flow and delivery according to clinical needs.
Hospital Wards and General Patient Care
Medical oxygen may also be required in general wards, recovery areas and other patient-care departments. A centralized medical gas pipeline system allows oxygen to be distributed from the primary oxygen source to multiple areas of a healthcare facility.
For larger facilities, bulk liquid oxygen storage can support multiple departments from a central supply point.
Emergency and Mobile Medical Services
Portable oxygen cylinders and other compact oxygen equipment are commonly used for mobile or short-duration applications. These applications differ from bulk LOX systems, which are generally associated with fixed healthcare infrastructure and higher-volume oxygen supply.
How Liquid Medical Oxygen Is Supplied in Hospitals
A hospital liquid oxygen system normally converts stored LOX into gaseous oxygen before distributing it to clinical areas. The basic supply path can be represented as:

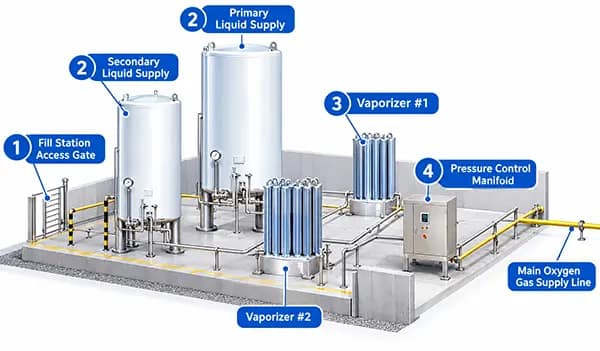

LOX delivery → Cryogenic storage tank → Vaporizer → Pressure control → Medical gas pipeline → Clinical outlets
1. Liquid Oxygen Delivery
Bulk liquid oxygen is delivered to the healthcare facility by a suitable cryogenic transport system and transferred into the on-site storage tank.
The storage and delivery arrangements depend on the facility’s oxygen demand, local infrastructure, supplier capabilities and applicable safety requirements.
2. Cryogenic LOX Storage
The liquid oxygen is stored in a vacuum-insulated cryogenic tank designed for low-temperature service. Effective insulation reduces heat transfer into the tank and helps limit unwanted vaporization.
DSW liquid oxygen cryogenic tanks are vacuum-insulated pressure vessels designed for the storage of LOX at approximately -183°C. They are available for medical and industrial oxygen supply applications.
3. Vaporization
Before oxygen enters the hospital’s gaseous medical gas distribution system, liquid oxygen must be converted into gas.
Vaporizers transfer heat to the cryogenic liquid, allowing the LOX to change from liquid to gaseous oxygen. WHO describes vacuum-insulated evaporator systems as systems that move LOX from a bulk cryogenic storage tank through a vaporizer and then through pressure and flow regulation equipment before delivery through the medical gas pipeline system.
4. Pressure Regulation
After vaporization, pressure-control equipment regulates the gaseous oxygen before it enters the medical gas pipeline.
The pressure-control system must be designed according to the requirements of the healthcare facility, the distribution system and applicable regulations.

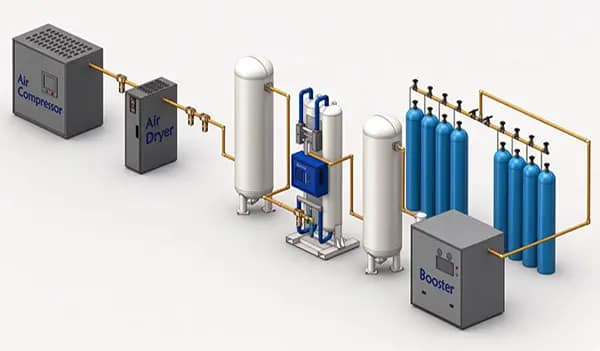

5. Medical Gas Pipeline Distribution
The gaseous oxygen is distributed through the medical gas pipeline system to designated outlets throughout the healthcare facility.
These outlets can serve intensive care units, operating rooms, emergency departments, wards and other clinical areas where medical oxygen is required.
Why Hospitals Use Liquid Oxygen
Liquid oxygen can be suitable for healthcare facilities with relatively high oxygen demand and access to a reliable LOX supply chain. WHO identifies bulk liquid oxygen storage tanks as one of the oxygen sources used by health facilities and notes that LOX can supply oxygen through a centrally piped medical gas system.
High-Volume Oxygen Storage
LOX provides a high-density method of storing oxygen compared with storing the same oxygen quantity entirely as compressed gas. This makes bulk liquid oxygen particularly useful for facilities with substantial oxygen requirements.
Centralized Oxygen Supply
A bulk LOX system can supply multiple departments through one centralized oxygen source and medical gas pipeline network.
Reduced Cylinder Handling
For facilities with high oxygen consumption, bulk storage can reduce the need to manage large numbers of individual high-pressure cylinders for routine supply.
Continuous Supply Infrastructure
A properly designed bulk oxygen system can support continuous medical oxygen delivery when the storage, vaporization, pressure-control and distribution systems are correctly sized and maintained.
Integration With Hospital Oxygen Systems
Bulk LOX storage can be integrated with vaporizers, pressure-control equipment, monitoring systems and backup oxygen sources to form a complete medical oxygen supply system.
Liquid Medical Oxygen vs. Compressed Medical Oxygen
| Feature | Liquid Medical Oxygen | Compressed Medical Oxygen |
|---|---|---|
| Storage Form | Cryogenic liquid | Compressed gas |
| Typical Storage Equipment | Bulk cryogenic tank or LOX cylinder | High-pressure gas cylinder |
| Typical Application | Hospitals and facilities with higher oxygen demand | Portable, backup, and smaller-scale applications |
| Distribution | Vaporizer and medical gas pipeline system | Cylinder, manifold, or pipeline system |
| Storage Density | High | Lower than liquid storage for an equivalent vessel volume |
| Portability | Primarily fixed installation | Portable and movable |
| Main Advantage | Suitable for bulk oxygen storage and centralized supply | Flexible for portable and backup oxygen requirements |
The appropriate oxygen source depends on the facility’s oxygen demand, infrastructure, supply chain, operating environment, applicable regulations and backup requirements.
Equipment Used in Liquid Medical Oxygen Systems
A complete liquid medical oxygen system includes more than the storage tank. The major components work together to store, vaporize, regulate and distribute oxygen safely.
| Equipment | Function |
|---|---|
| Liquid Oxygen Cryogenic Tank | Stores bulk LOX at cryogenic temperature. |
| Vaporizer | Converts liquid oxygen into gaseous oxygen. |
| Pressure Build-Up System | Helps maintain the required tank pressure during operation. |
| Pressure Regulators | Controls oxygen pressure before distribution. |
| Cryogenic Valves | Controls the flow of liquid or gaseous oxygen. |
| Safety Relief Devices | Provides pressure protection for the cryogenic system. |
| Medical Gas Pipeline | Distributes gaseous oxygen to designated areas of the facility. |
| Backup Oxygen Supply | Provides an alternative oxygen source when the primary supply is unavailable or requires maintenance. |
Liquid Oxygen Storage Tanks for Hospitals
A liquid oxygen storage tank is a critical component of a bulk medical oxygen system. The tank must be designed for cryogenic temperatures, appropriate pressure conditions and oxygen service.
DSW liquid oxygen cryogenic tanks use a double-wall, vacuum-insulated design to reduce heat transfer and support stable LOX storage. Depending on project requirements, tank configurations can include stainless-steel inner vessels, insulated annular spaces, carbon-steel outer shells and integrated pressure-relief and oxygen-compatible piping systems.
Tank capacity, operating pressure, design pressure, orientation, instrumentation and piping configuration should be selected according to the requirements of the specific oxygen supply project.
Liquid oxygen cryogenic tanks are available for medical oxygen supply systems, hospitals and other facilities requiring bulk LOX storage.
Safety Considerations for Liquid Medical Oxygen Systems
Liquid oxygen is extremely cold and oxygen itself is an oxidizing agent. Improper handling can increase the risk of fire, material damage or cryogenic injury. WHO notes that medical oxygen, in liquid or gaseous form, requires appropriate safety measures because oxygen supports combustion.
Important considerations for LOX systems include:
- Using equipment designed and approved for the intended oxygen service.
- Maintaining appropriate separation and ventilation around oxygen equipment.
- Using suitable pressure-relief and safety devices.
- Controlling ignition sources and combustible materials in oxygen service areas.
- Following the manufacturer’s operating and maintenance instructions.
- Providing appropriate personnel training.
- Maintaining the storage tank, vaporizer, valves and distribution system according to applicable requirements.
- Providing suitable backup oxygen sources for critical healthcare applications.
Specific installation, testing, operating and safety requirements vary by country, healthcare facility and project. Medical oxygen systems should therefore be designed, installed and operated according to applicable local regulations, medical-gas requirements and pressure-vessel standards.
Choosing a Liquid Oxygen Storage System
When selecting a bulk liquid oxygen storage system for a healthcare facility, several engineering factors should be considered.
Oxygen Demand
The storage capacity and vaporization system should be selected according to average and peak oxygen demand rather than storage volume alone.
Required Storage Capacity
Tank capacity should consider normal consumption, delivery intervals, peak demand and the facility’s required reserve capacity.
Vaporization Capacity
The vaporizer should be capable of supporting the required oxygen flow under the expected operating conditions.
Pressure Requirements
Tank pressure, distribution pressure and pressure-control equipment should be matched to the requirements of the medical gas system.
Site Conditions
Available installation space, ambient temperature, ventilation, access for oxygen delivery vehicles and local site conditions should be considered during system design.
Backup Supply
Healthcare facilities should evaluate secondary and reserve oxygen sources as part of overall supply continuity planning. WHO technical guidance emphasizes the importance of appropriate oxygen sources, storage and distribution arrangements for health facilities.
Applicable Standards
The tank and associated equipment should be designed and manufactured according to the standards and certification requirements applicable to the destination market and specific project.
DSW Liquid Oxygen Cryogenic Tanks
DSW manufactures vacuum-insulated liquid oxygen cryogenic tanks for medical and industrial oxygen storage applications. The tanks are designed for cryogenic LOX storage and can be configured according to project requirements.
Typical features include:
- Vacuum-insulated double-wall construction
- Stainless-steel inner vessel options
- Low heat-transfer insulation systems
- Pressure-relief and safety components
- Oxygen-compatible piping and valves
- Vertical and horizontal configurations
- Customizable capacity and pressure specifications
- Testing and quality-control procedures appropriate to the project
DSW provides cryogenic tank engineering and manufacturing for liquid oxygen, liquid nitrogen, liquid argon and other liquefied gases. For medical oxygen projects, tank capacity, vaporization requirements, pressure conditions and applicable certification should be confirmed during project engineering.
Learn more about DSW cryogenic tank manufacturing and engineering capabilities.
TECHNICAL QUESTIONS
About Liquid Medical Oxygen
Liquid medical oxygen is oxygen stored in liquid form at cryogenic temperature. It is typically stored in vacuum-insulated equipment and vaporized into gaseous oxygen before being distributed through a healthcare facility’s medical gas system.
Liquid medical oxygen is used as a bulk oxygen source for hospitals and healthcare facilities. Applications can include respiratory care, emergency departments, intensive care units, operating rooms, neonatal care and other clinical areas requiring medical oxygen.
Bulk LOX is stored in a cryogenic tank and converted into gaseous oxygen through a vaporizer. Pressure-control equipment then regulates the gas before it enters the hospital’s medical gas pipeline system.
Liquid oxygen is stored at cryogenic temperature in liquid form, while compressed oxygen is stored as a high-pressure gas. Bulk LOX is commonly associated with fixed, higher-demand oxygen systems, while compressed oxygen cylinders provide greater portability and are often used for backup or mobile applications.
Hospitals with substantial oxygen demand can use bulk LOX tanks to store a large quantity of oxygen at the facility and distribute gaseous oxygen through a centralized medical gas pipeline system.
Conclusion
Liquid medical oxygen is an important source for healthcare facilities that require a reliable bulk oxygen supply. Its applications extend across respiratory care, emergency medicine, intensive care, operating rooms, neonatal care and other hospital departments.
From an engineering perspective, a liquid oxygen system is more than a storage tank. The complete system can include bulk LOX storage, vaporization, pressure regulation, safety devices, monitoring and medical gas distribution. Proper sizing and integration of these components are essential for reliable oxygen supply.
For hospitals and healthcare projects requiring bulk oxygen storage, DSW provides liquid oxygen cryogenic tanks and customized cryogenic equipment solutions. Contact DSW to discuss tank capacity, pressure requirements, configuration and applicable project standards.
